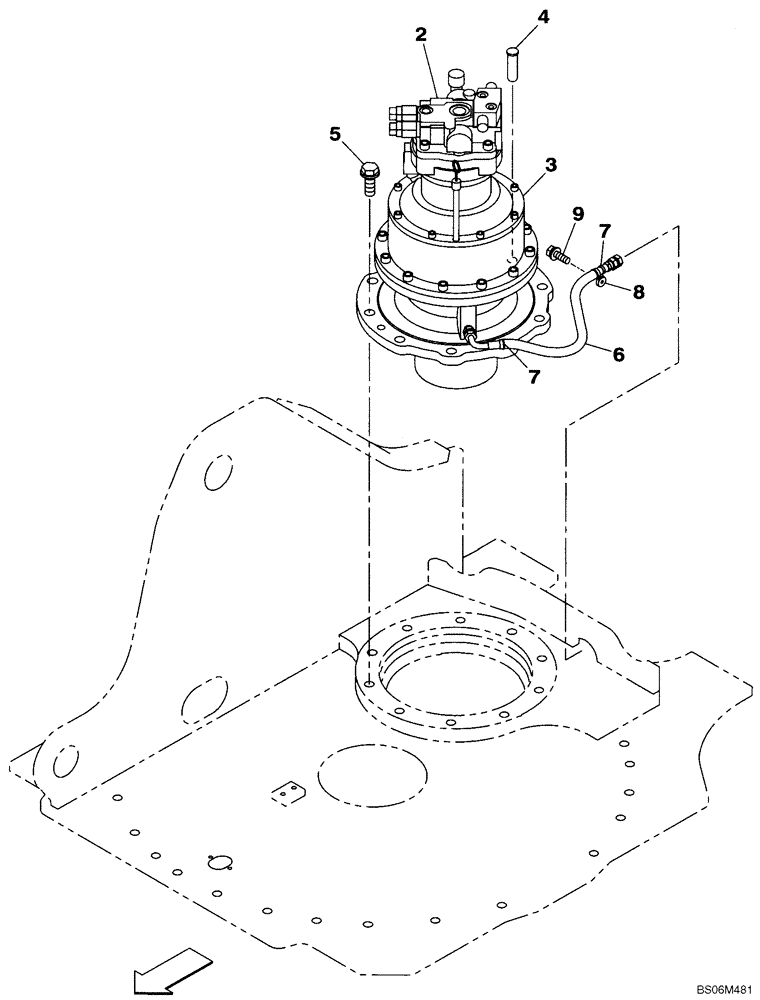

Запчасти Case CX250C (08-035[00]) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

2

KBC10090

MOTO-REDUCTION GEAR

See Figure 08-057

1шт.

3

KBC10030

REDUCER

See Figure 08-058

1шт.

3

KBC10030R

REMAN-REDUCTION UNIT

See Figure 08-058

1шт.

3

KBC10030C

CORE-REDUCTION UNIT

Return Number

1шт.

4

158955A1

HEADED PIN

1шт.

5

105R024Y070R

BOLT

9шт.

6

150488A1

PLASTIC-RUBBER TUBE

1шт.

7

150067A1

MOUNTING CLIP

2шт.

8

KHR2584

CLAMP

1шт.

9

KHJ1215

BOLT,Spcl

1шт.
