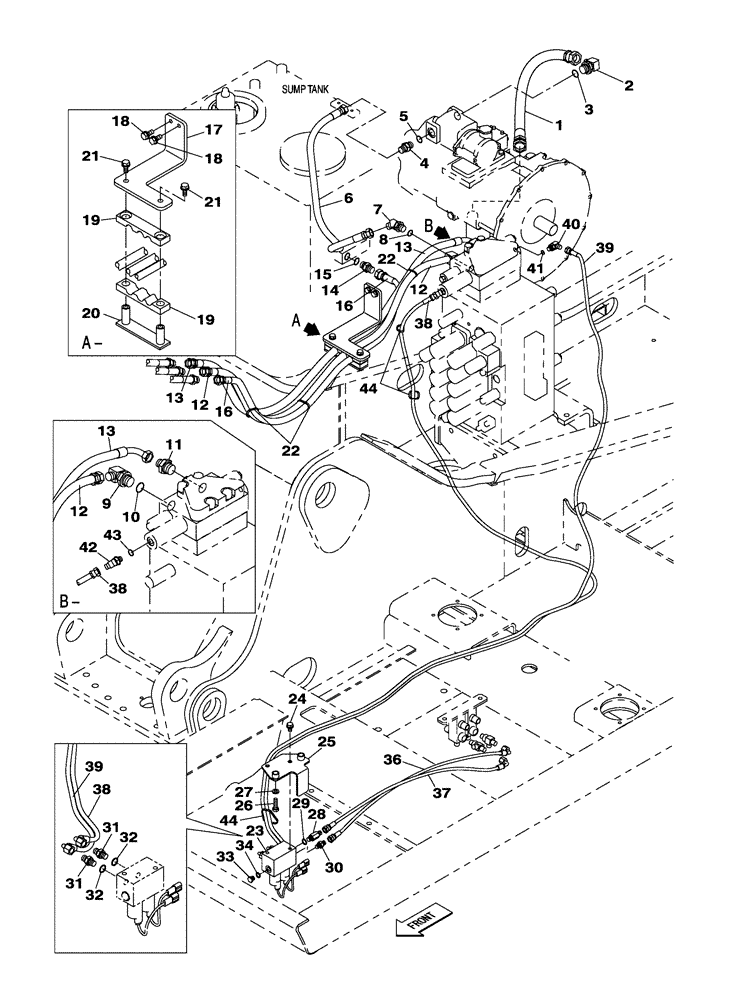

Запчасти Case CX250C (08-034[00]) - HYDRAULIC CIRCUIT - SMALL FLOW - WITH VALVE, SOLENOID (08) - HYDRAULICS

1

KBJ15750

HYDRAULIC HOSE

870 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

Include(s) 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

7

157585A1

ELBOW

1шт.

Include(s) 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

1шт.

Include(s) 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

1шт.

13

KBJ12440

HYDRAULIC HOSE

1560 mm

1шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 15

1шт.

15

154487A1

O-RING

1шт.

16

KBJ12450

HYDRAULIC HOSE,12.70 mm ID x 1580.00 mm

1шт.

17

KRJ27140

BRACKET, SUPPORTING

1шт.

18

166052A1

BOLT

M10 x 25

2шт.

19

KRJ11580

HOSE CLIP

2шт.

20

KRJ11590

SUPPORT

1шт.

21

166052A1

BOLT

M10 x 25

2шт.

22

150496A1

MOUNTING CLIP

250 mm

3шт.

23

KHJ14000

VALVE SECTION

1шт.

See Figure(s) 08-251-01 01

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

KHJ15190

SUPPORT

1шт.

Include(s) 26

1шт.

26

162299A1

CLIP

2шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

150409A1

WASHER

2шт.

29

162554A1

FITTING

1шт.

Include(s) 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

161841A1

HYD CONNECTOR

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

159002A1

PLUG

1шт.

Include(s) 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm

1шт.

38

KHJ2088

HOSE

850 mm

1шт.

39

KHJ18020

HOSE

3550 mm

1шт.

40

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150933A1

ELBOW

1шт.

Include(s) 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

150496A1

MOUNTING CLIP

250 mm

3шт.
