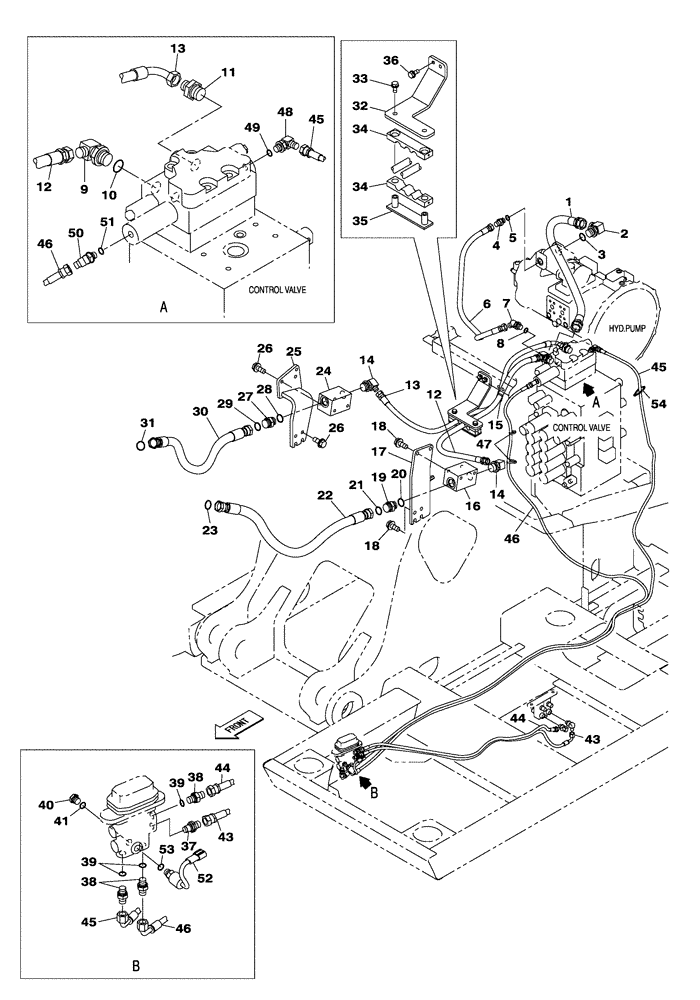

Запчасти Case CX250C (08-033[01]) - HYDRAULIC CIRCUIT - SMALL FLOW - CX250C LR (08) - HYDRAULICS

1

KSJ12940

HYDRAULIC HOSE

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

Include(s) 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ15660

HYDRAULIC HOSE

1шт.

7

157585A1

ELBOW

1шт.

Include(s) 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

1шт.

Include(s) 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KRJ23610

HYDRAULIC HOSE

1шт.

13

KRJ23620

HYDRAULIC HOSE

1шт.

14

KHJ1960

ELBOW

2шт.

15

150496A1

MOUNTING CLIP

1шт.

16

KRJ12170

MANIFOLD VALVE

1шт.

17

KRJ11470

SUPPORT

1шт.

18

166352A1

BOLT

6шт.

19

KHJ1349

ADAPTER

1шт.

Include(s) 20

1шт.

20

154523A1

O-RING

1шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

1шт.

23

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

24

KRJ12170

MANIFOLD VALVE

1шт.

25

KRJ16050

SUPPORT

1шт.

26

166352A1

BOLT

6шт.

27

KHJ1349

ADAPTER

1шт.

Include(s) 28

1шт.

28

154523A1

O-RING

1шт.

29

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

30

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

1шт.

31

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

32

KRJ29680

BRACKET

1шт.

33

166052A1

BOLT

2шт.

34

KRJ11580

HOSE CLIP

2шт.

35

KRJ11590

SUPPORT

1шт.

36

166052A1

BOLT

2шт.

37

161841A1

HYD CONNECTOR

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

159002A1

PLUG

1шт.

Include(s) 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

KHJ2092

HOSE

1100 MM

1шт.

44

KHJ2050

HOSE,6.3mm ID x 1000mm L

1000 MM

1шт.

45

KHJ13660

HYDRAULIC HOSE

3300 MM

1шт.

46

KHJ17550

HOSE

3350 MM

1шт.

47

150496A1

MOUNTING CLIP

250 MM

5шт.

48

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

150933A1

ELBOW

1шт.

Include(s) 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

KHR21490

PRESSURE SWITCH

1шт.

Include(s) 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

150496A1

MOUNTING CLIP

1шт.
