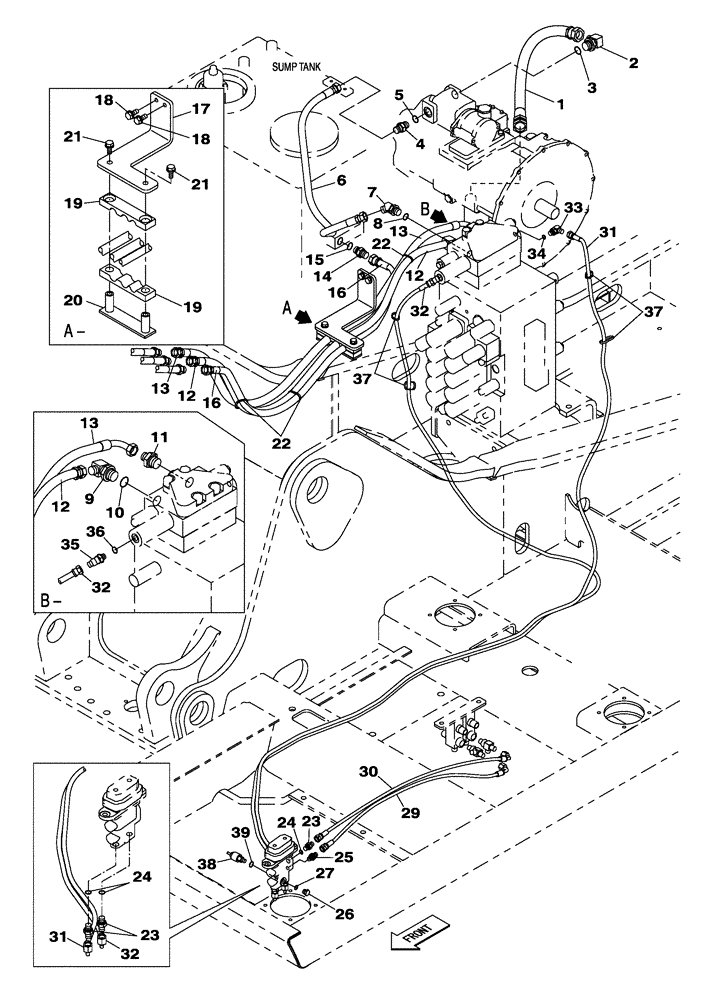

Запчасти Case CX250C (08-033[00]) - HYDRAULIC CIRCUIT - SMALL FLOW (08) - HYDRAULICS

1

KBJ15750

HYDRAULIC HOSE

870 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

1шт.

Include(s) 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

7

157585A1

ELBOW

1шт.

Include(s) 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

1шт.

Include(s) 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

1шт.

13

KBJ12440

HYDRAULIC HOSE

1560 mm

1шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

Include(s) 15

1шт.

15

154487A1

O-RING

1шт.

16

KBJ12450

HYDRAULIC HOSE,12.70 mm ID x 1580.00 mm

1шт.

17

KRJ27140

BRACKET, SUPPORTING

1шт.

18

166052A1

BOLT

2шт.

19

KRJ11580

HOSE CLIP

2шт.

20

KRJ11590

SUPPORT

1шт.

21

166052A1

BOLT

2шт.

22

150496A1

MOUNTING CLIP

250 mm

3шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

161841A1

HYD CONNECTOR

1шт.

26

159002A1

PLUG

1шт.

Include(s) 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm

1шт.

30

KHJ2088

HOSE

850 mm

1шт.

31

KHJ18020

HOSE

3550 mm

1шт.

32

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

150933A1

ELBOW

1шт.

Include(s) 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

150496A1

MOUNTING CLIP

250 mm

3шт.

38

KHR21490

PRESSURE SWITCH

1шт.

Include(s) 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
