Запчасти Case CX250C (08-031[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

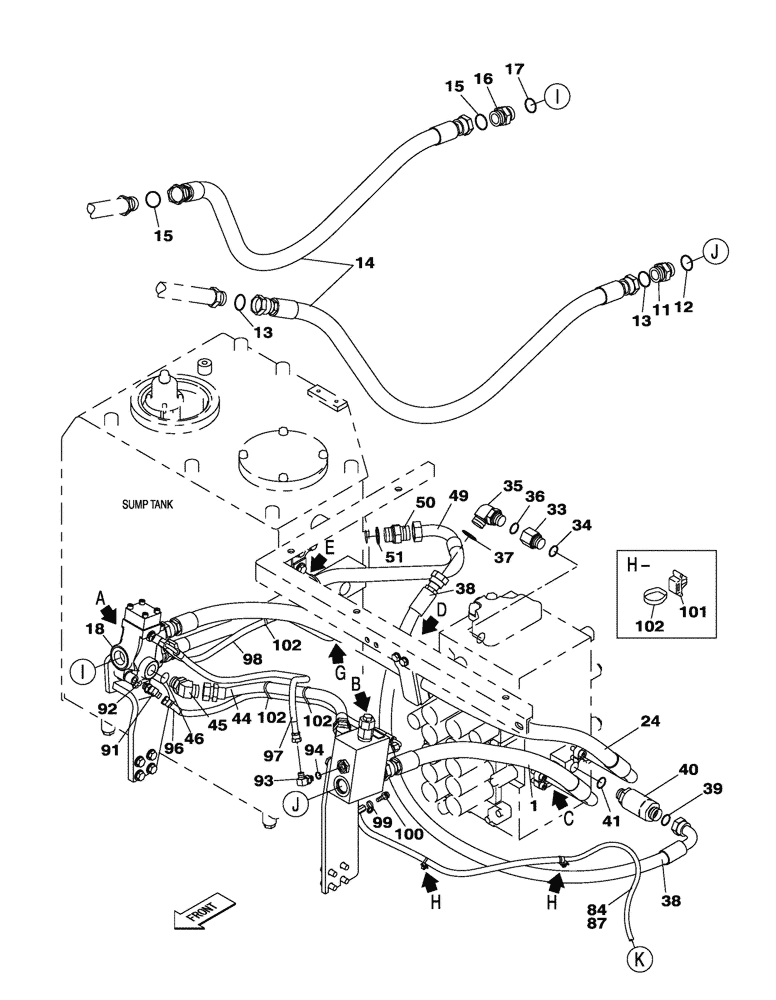

Схема запчастей Case CX250C - (08-031[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS
93
18
13
16
12
99
24
39
38
1
34
37
44
41
102
15
46
40
50
33
98
101
45
102
35
102
17
92
51
96
38
84
13
102
36
87
11
97
14
94
49
100
15
91

Артикул

Название

Примечание

Количество

11

KHJ1349

ADAPTER

1шт.

Include(s) 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

2шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KHJ1349

ADAPTER

1шт.

Include(s) 17

1шт.

17

154523A1

O-RING

1шт.

18

KHJ10420

VALVE SECTION

1шт.

24

KBJ15660

HYDRAULIC HOSE

1550 mm

1шт.

25

155211A1

O-RING

1шт.

33

159198A1

ADAPTER

1шт.

Include(s) 34

1шт.

34

154503A1

O-RING

1шт.

35

KHJ1804

ELBOW

1шт.

Include(s) 36

1шт.

36

154503A1

O-RING

1шт.

37

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

38

KRJ16540

HYDRAULIC HOSE,19.00 mm ID x 1130.00 mm

1шт.

39

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

40

KHJ10480

VALVE SECTION

1шт.

Include(s) 41

1шт.

41

154503A1

O-RING

1шт.

44

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

45

157586A1

ELBOW

1шт.

Include(s) 46

1шт.

46

154503A1

O-RING

1шт.

49

KBJ12260

HYDRAULIC HOSE,25.40 mm ID x 1120.00 mm

1шт.

50

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

1шт.

51

154523A1

O-RING

1шт.

84

KHJ18110

HOSE

4000 mm

1шт.

87

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

91

150933A1

ELBOW

1шт.

Include(s) 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

KHJ16850

HOSE

800 mm

1шт.

97

KHJ16870

HOSE

1000 mm

1шт.

98

KHJ16890

HOSE

900 mm

1шт.

99

KHR2584

CLAMP

1шт.

100

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

101

KHR10220

MOUNTING CLIP

2шт.

102

150496A1

MOUNTING CLIP

250 mm

7шт.

Выбрано товаров: 46
