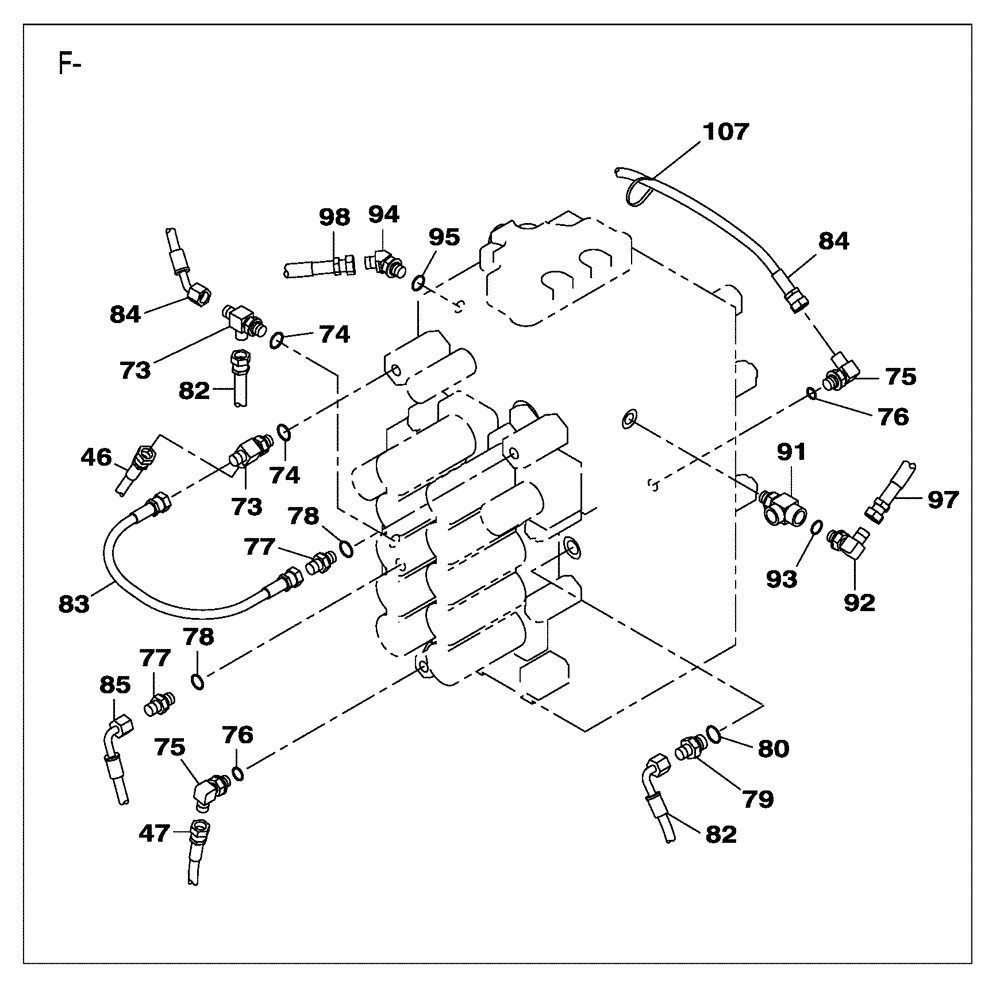

Запчасти Case CX250C (08-030[00]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

46

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

47

KHJ2097

HOSE

1750 mm

1шт.

73

159497A1

TEE

2шт.

Include(s) 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Include(s) 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

153378A1

ADAPTER

1шт.

Include(s) 80

1шт.

80

154475A1

O-RING

1шт.

82

KHJ2163

HOSE

620 mm

1шт.

83

KHJ2190

HOSE

420 mm

1шт.

84

KHJ2244

HOSE

600 mm

1шт.

91

KHJ12530

TEE

1шт.

92

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

150933A1

ELBOW

1шт.

Include(s) 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

98

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

107

150496A1

MOUNTING CLIP

250 mm

3шт.
