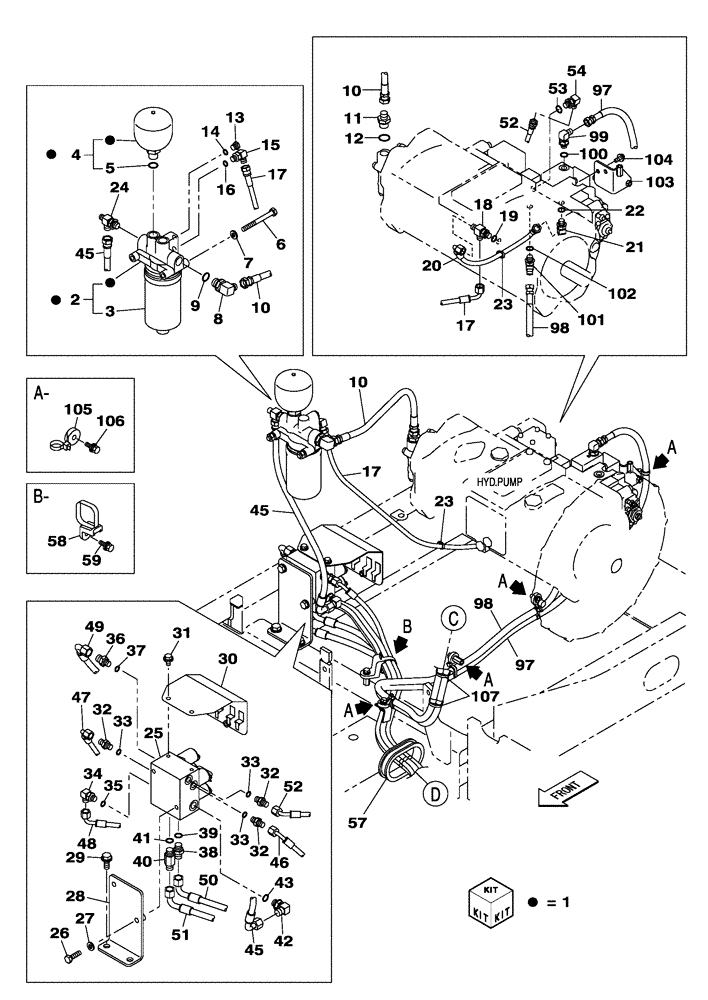

Запчасти Case CX250C (08-028[00]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

1

KHJ10930

ACCUMULATOR

1шт.

Include(s) 2 - 5

1шт.

2

KHJ10940

MANIFOLD VALVE

1шт.

Include(s) 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

1шт.

Include(s) 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

11

161084A1

ADAPTER

1шт.

Include(s) 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

1шт.

Include(s) 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2036

HOSE

750 mm

1шт.

18

159497A1

TEE

1шт.

Include(s) 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ2342

HOSE

380 mm

1шт.

21

150933A1

ELBOW

1шт.

Include(s) 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150496A1

MOUNTING CLIP

250 mm

2шт.

24

KHJ13900

TEE

1шт.

25

KHJ14520

SOLENOID VALVE

1шт.

See Figure(s) 08-250-00 01

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

KHJ14960

SUPPORT

1шт.

29

166352A1

BOLT

M12 x 30

2шт.

30

KHJ16220

COVER

1шт.

31

166345A1

BOLT

M8 x 16

2шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

152747A1

ADAPTER

1шт.

Include(s) 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 39

1шт.

39

154475A1

O-RING

1шт.

40

159226A1

ADAPTER

1шт.

Include(s) 41

1шт.

41

154475A1

O-RING

1шт.

42

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Include(s) 43

1шт.

43

154475A1

O-RING

1шт.

45

KHJ2148

HOSE

550 mm

1шт.

46

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

47

KHJ2097

HOSE

1750 mm

1шт.

48

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm

1шт.

49

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

50

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

2250 mm

1шт.

51

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

52

KHJ2087

HYDRAULIC HOSE,800.00 mm

1шт.

53

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Include(s) 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

MMA1011

RUBBER SEAL

1шт.

58

KHR2581

CLAMP

1шт.

59

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

97

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

98

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

99

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

150933A1

ELBOW

1шт.

Include(s) 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KRJ16150

SUPPORT

1шт.

104

166350A1

BOLT

M8 x 20

2шт.

105

KHR2584

CLAMP

5шт.

106

KHJ1215

BOLT,Spcl

M8 x 25

5шт.

107

150496A1

MOUNTING CLIP

3шт.
