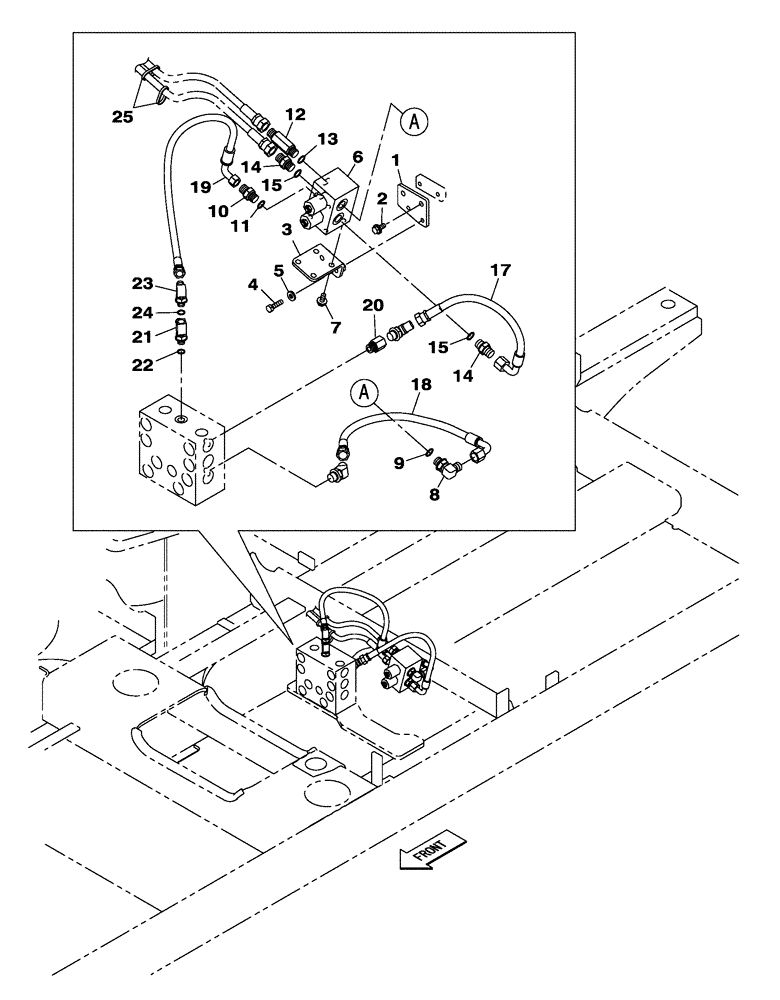

Запчасти Case CX250C (08-027[01]) - HYDRAULIC CIRCUIT - PILOT - CX250C LR (08) - HYDRAULICS

1

KRJ19150

BRACKET

1шт.

2

166350A1

BOLT

M8 x 20

2шт.

3

KRJ19160

BRACKET

1шт.

4

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

5

153081A1

WASHER

2шт.

6

KRJ6506

VALVE SECTION

1шт.

Include(s) 08-261-00 01

1шт.

7

166350A1

BOLT

M8 x 20

4шт.

8

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Include(s) 9

1шт.

9

154475A1

O-RING

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 9

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KAJ2351

FITTING

1шт.

Include(s) 11

1шт.

13

154475A1

O-RING

1шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 13

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2104

HOSE

1шт.

18

KHJ2104

HOSE

1шт.

19

KHJ20460

FLEXIBLE HOSE

1шт.

20

KHJ13790

STUD

1шт.

21

KHJ2773

TEE

1шт.

Include(s) 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150496A1

MOUNTING CLIP

250 MM

2шт.
