Запчасти Case CX250C (08-027[00]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (08) - HYDRAULICS

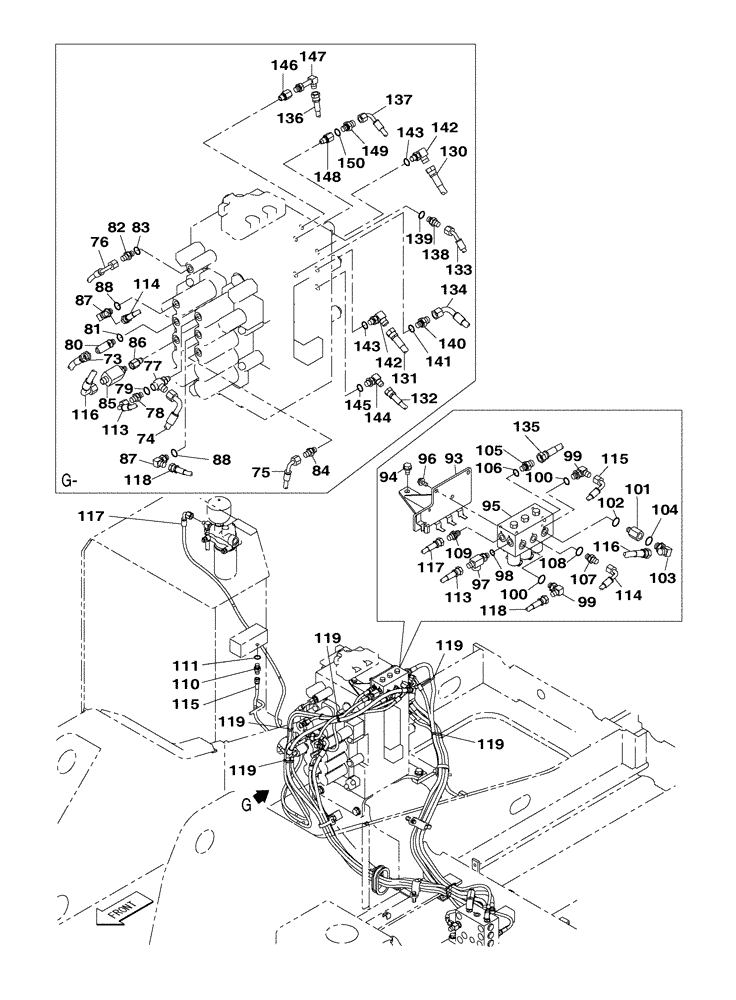

![Схема запчастей Case CX250C - (08-027[00]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/1087892.png)
№
Артикул
Название
Примечание
Количество
73
KHJ2010
HOSE
1450 mm
1шт.
74
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1шт.
75
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
76
KHJ2096
FLEXIBLE HOSE
1500 mm
1шт.
77
167517A1
TEE
1шт.
78
153559A1
ELBOW
1шт.
Include(s) 79
1шт.
79
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
80
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 81
1шт.
81
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
82
KHJ1372
ADAPTER
1шт.
Include(s) 83
1шт.
83
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
84
161841A1
HYD CONNECTOR
1шт.
85
KHJ1372
ADAPTER
1шт.
86
KHJ25100
STUD
1шт.
87
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
2шт.
Include(s) 88
1шт.
88
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
93
KBJ15690
BRACKET, SUPPORTING
1шт.
94
166351A1
BOLT,Sems, M10 x 20mm
M10 x 20
2шт.
95
KHJ23870
VALVE
1шт.
96
166350A1
BOLT
M8 x 20
3шт.
97
167666A1
FITTING
1шт.
Include(s) 98
1шт.
98
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
99
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
2шт.
Include(s) 100
1шт.
100
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
101
KHJ1584
UNION
1шт.
Include(s) 102
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
1шт.
Include(s) 104
1шт.
104
154475A1
O-RING
1шт.
105
152747A1
ADAPTER
1шт.
Include(s) 106
1шт.
106
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
107
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 108
1шт.
108
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
109
161841A1
HYD CONNECTOR
1шт.
110
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 111
1шт.
111
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
113
KHJ2351
HOSE
420 mm
1шт.
114
KHJ2309
HOSE
550 mm
1шт.
115
KHJ2134
HOSE,6.3mm ID x 2250mm L
2250 mm
1шт.
116
KHJ13680
HYDRAULIC HOSE
700 mm
1шт.
117
KHJ2167
HOSE
2800 mm
1шт.
118
KHJ2142
HOSE
500 mm
1шт.
119
150496A1
MOUNTING CLIP
250 mm
6шт.
130
KHJ2099
HOSE
1300 mm
1шт.
131
KHJ2307
HOSE,9.5mm ID x 1200mm L
1шт.
132
KHJ2053
HOSE
1150 mm
1шт.
133
KHJ15120
HYDRAULIC HOSE
1350 mm
1шт.
134
KHJ11580
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
135
KHJ2100
FLEXIBLE HOSE
1500 mm
1шт.
136
KHJ24760
FLEXIBLE HOSE
1400 mm
1шт.
137
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
138
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 139
1шт.
139
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
140
152747A1
ADAPTER
1шт.
Include(s) 141
1шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
153559A1
ELBOW
1шт.
Include(s) 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
2шт.
Include(s) 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
KHJ13640
STUD
1шт.
147
KHJ1178
ELBOW
1шт.
148
KHJ25100
STUD
1шт.
149
KHJ0719
ELBOW
1шт.
Include(s) 150
1шт.
150
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 79
