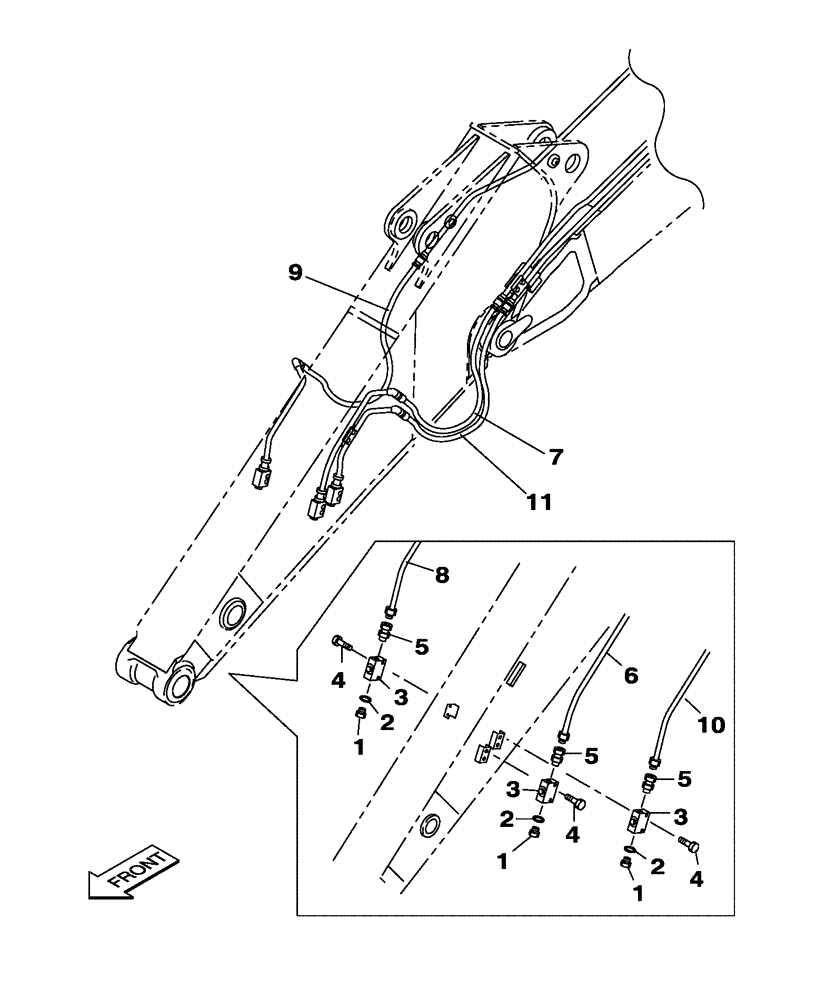

Запчасти Case CX250C (08-022[00]) - HYDRAULIC CIRCUIT - DIPPER 2.50 M - LOW FLOW (08) - HYDRAULICS

1

159085A1

PLUG

3шт.

Include(s) 2

1шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

3шт.

See Figure(s) 08-255-00 01

1шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV24220

HYD TUBE

L

1шт.

7

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

8

KBV24230

HYD TUBE

R

1шт.

9

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

10

KBV24240

HYD TUBE

1шт.

11

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.
