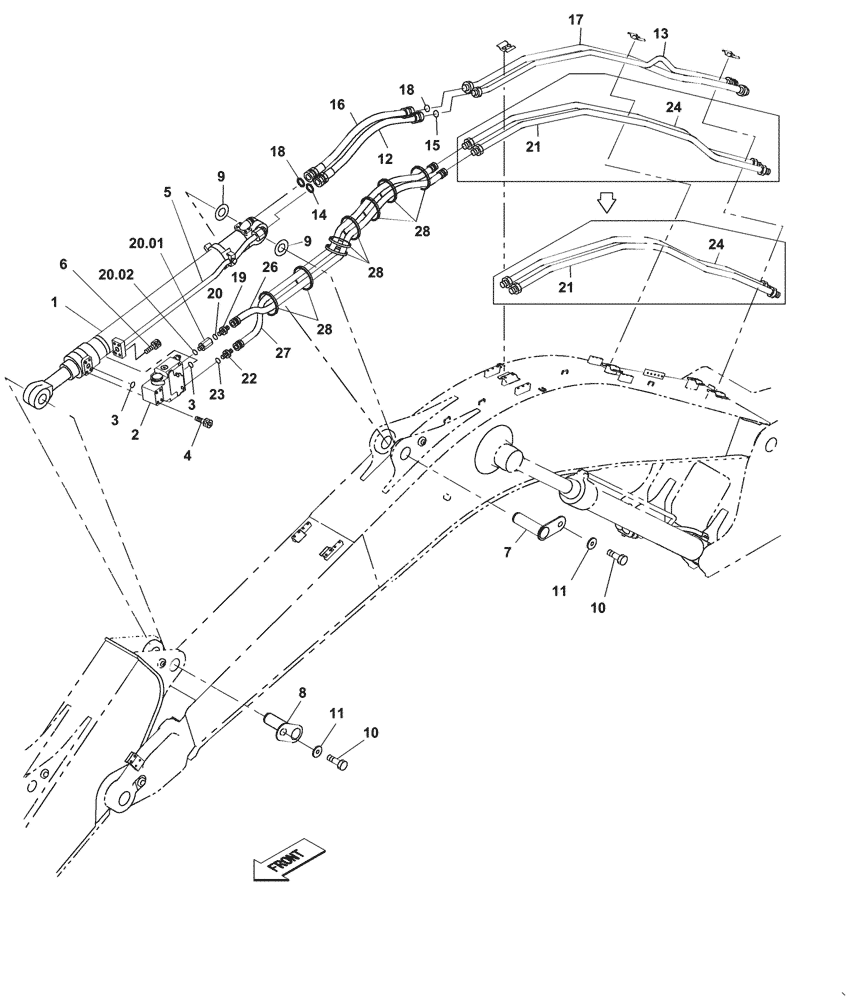

Запчасти Case CX250C (08-017[02A]) - HYDRAULIC SYSTEM, DIPPER CYLINDER, W/ SAFETY VALVE (08) - HYDRAULICS

1

KBV11100

HYDRAULIC CYLINDER

1шт.

2

KRV11120

VALVE SECTION

, Serial Range: -NCSAM1235

1шт.

2

KSV17260

SAFETY VALVE

, Start Serial: NCSAM1236

1шт.

3

162246A1

O-RING

2шт.

4

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

5

KBV12220

HYD TUBE

1шт.

6

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

7

KBV11541

PIN

1шт.

8

KBV23371

PIN

1шт.

9

KBV0764

SHIM

2шт.

10

102R012Y025R

SCREW

2шт.

11

157141A1

WASHER

2шт.

12

KBV23530

HYDRAULIC HOSE

1шт.

13

KBV23511

HYD TUBE

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

KRV25341

HOSE

1шт.

17

KBV23521

HYD TUBE

1шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

19

KNJ1106

HYD CONNECTOR

1шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20.01

KHJ0894

STUD

, Start Serial: NBSAM1113

1шт.

20.02

150960A1

O-RING,10.8mm ID x 2.4mm Width

, Start Serial: NBSAM1113

1шт.

21

KBV25620

HYD TUBE

, Serial Range: -NBSAM1113

1шт.

21

KBV25621

HYD TUBE

, Serial Range: NBSAM1113-NBSAM1150

1шт.

21

KBV25622

HYD TUBE

, Start Serial: NBSAM1151

1шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

23

150031A1

O-RING,10mm ID x 24mm OD

1шт.

24

KBV25620

HYD TUBE

, Serial Range: -NBSAM1113

1шт.

24

KBV25621

HYD TUBE

, Serial Range: NBSAM1114-NBSAM1150

1шт.

24

KBV25622

HYD TUBE

, Start Serial: NBSAM1151

1шт.

26

KHJ1865

HYDRAULIC HOSE

1шт.

27

KHJ17480

HYDRAULIC HOSE

1шт.

28

KHH0142

BAND

8шт.
