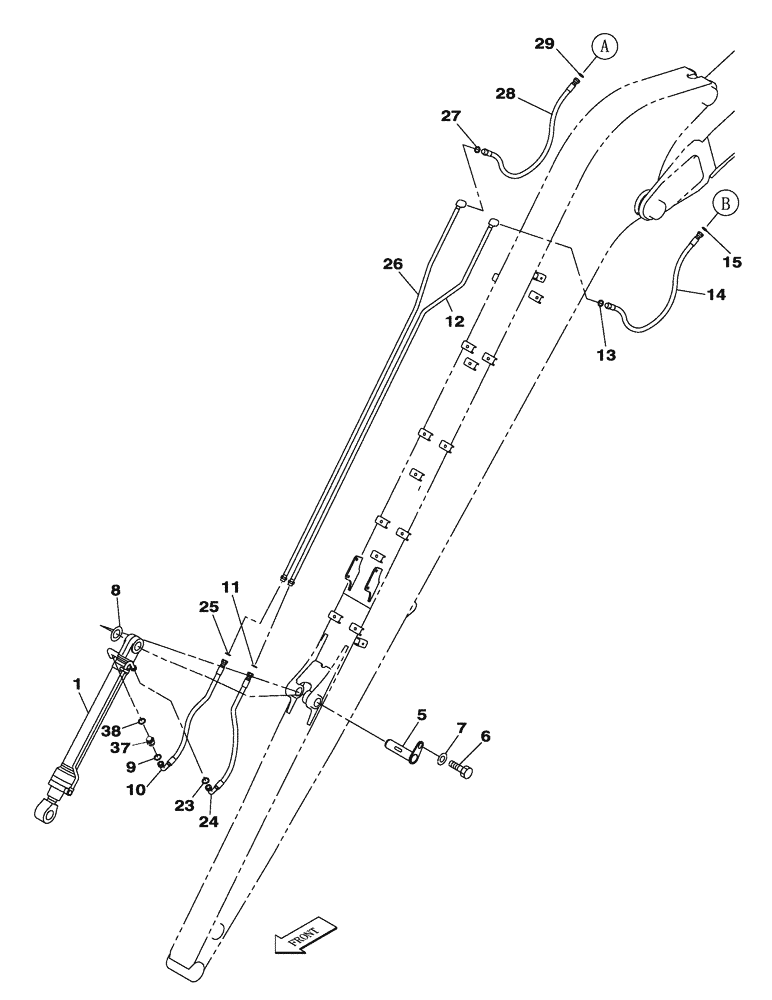

Запчасти Case CX250C (08-015[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER - 8.00 M - CX250C LR (08) - HYDRAULICS

1

KNV12541

BUCKET CYLINDER

1шт.

See Figure(s) 08-303-02 01

1шт.

1

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

1

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

5

KBV16930

PIN

1шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

7

157141A1

WASHER

1шт.

8

160734A1

SHIM

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KRV14231

HYDRAULIC HOSE

900 M

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

12

KBV16980

HYD TUBE

L

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KLV15030

HYDRAULIC HOSE

1шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

23

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

24

KRV14231

HYDRAULIC HOSE

900 M

1шт.

25

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

26

KBV16990

HYD TUBE

R

1шт.

27

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

28

KLV15030

HYDRAULIC HOSE

1700 M

1шт.

29

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

37

KHJ1348

ADAPTER

1шт.

Include(s) 38

1шт.

38

154503A1

O-RING

1шт.
