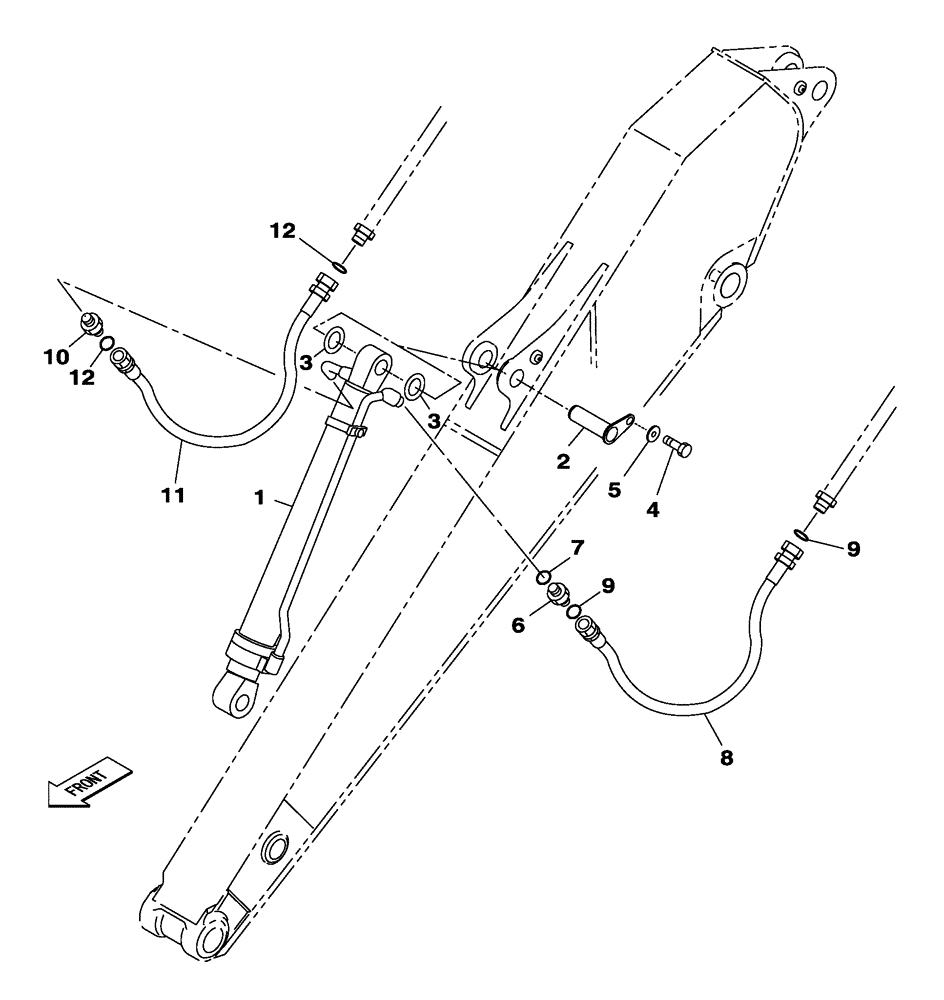

Запчасти Case CX250C (08-015[00]) - BUCKET CYLINDER - DIPPER - 3.50 M (08) - HYDRAULICS

1

KBV24080

BUCKET CYLINDER

1шт.

See Figure(s) 08-303-00 01

1шт.

1

KBV24080R

REMAN-HYD CYLINDER

CX250C CRAWLER EXCAVATOR TIER 4 (NA), DIPPER, 3.50 M

1шт.

1

KBV24080C

CORE-HYD CYLINDER

Return Number

1шт.

2

KBV11530

PIN

1шт.

3

159741A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KHJ1348

ADAPTER

1шт.

Include(s) 7

1шт.

7

154503A1

O-RING

1шт.

8

KBV19010

HYDRAULIC HOSE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ15840

ADAPTER

1шт.

11

KBV16740

HYDRAULIC HOSE,22.20 mm ID x 2000.00 mm

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
