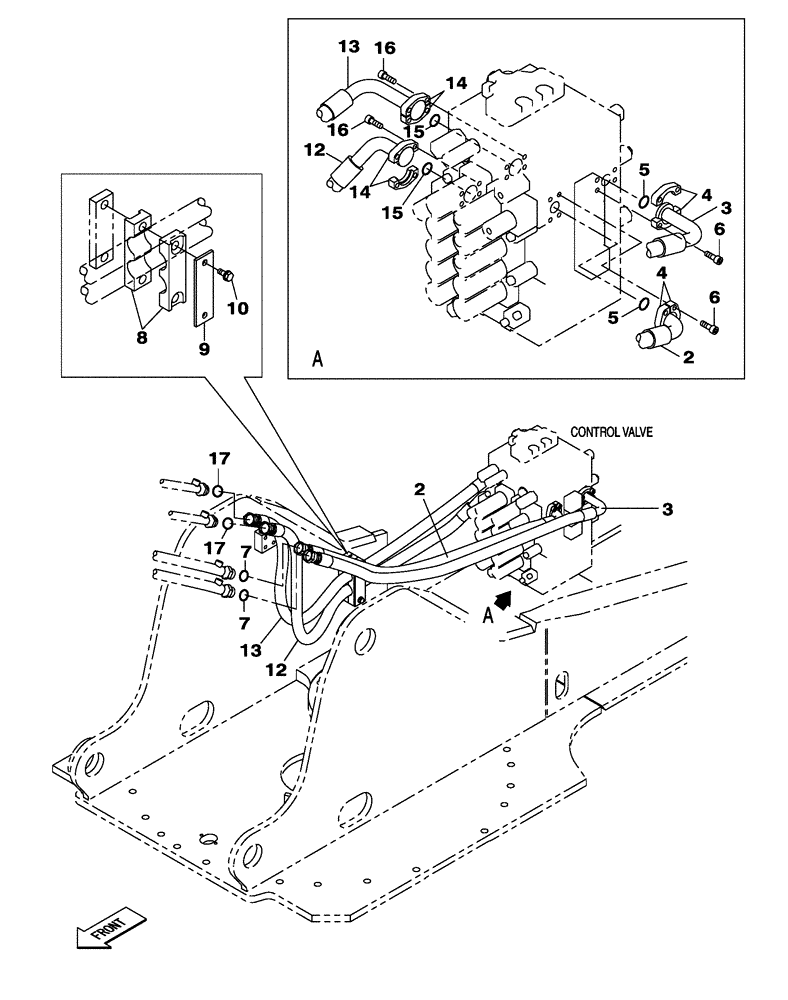

Запчасти Case CX250C (08-010[00]) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET CYLINDER (08) - HYDRAULICS

2

KBJ14401

HYDRAULIC HOSE

1300 mm

1шт.

3

KBJ10471

HYDRAULIC HOSE

1490 mm

1шт.

4

153459A1

FLANGE

4шт.

5

155211A1

O-RING

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KBJ14410

HOSE CLAMP

2шт.

9

KRJ10870

PLATE

1шт.

10

166052A1

BOLT

2шт.

12

KBJ14381

HYDRAULIC HOSE

1800 mm

1шт.

13

KBJ14391

HYDRAULIC HOSE

1770 mm

1шт.

14

153459A1

FLANGE

4шт.

15

155211A1

O-RING

2шт.

16

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
