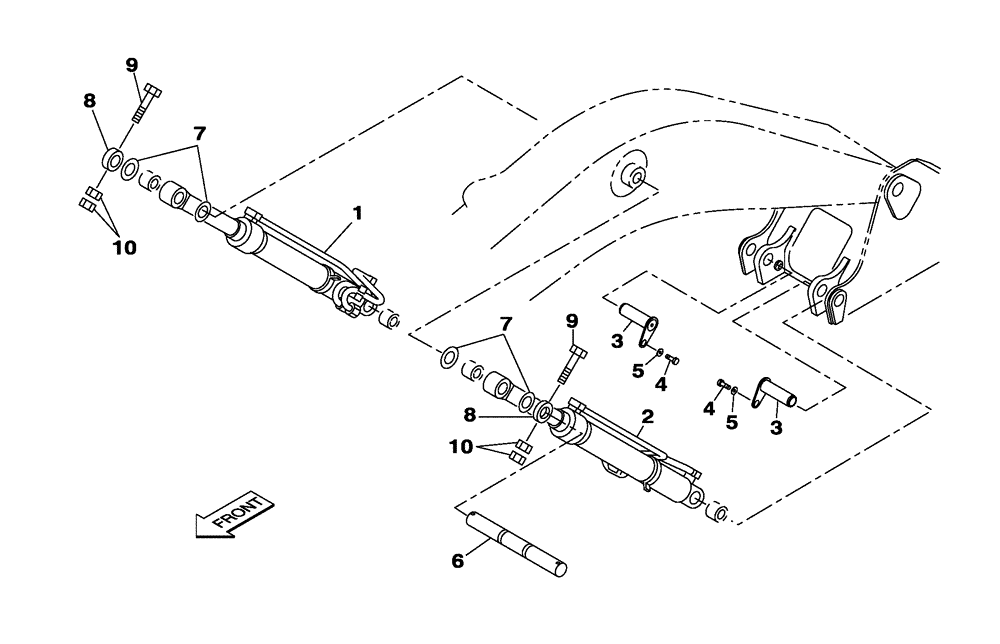

Запчасти Case CX250C (08-009[00]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITHOUT SAFETY VALVE (08) - HYDRAULICS

1

KBV25220

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-300-00 01

1шт.

1

KBV25220R

REMAN-HYD CYLINDER

CX250C CRAWLER EXCAVATOR TIER 4 (NA), BOOM CYLINDER - WITHOUT SAFETY VALVE

1шт.

1

KBV25220C

CORE-HYD CYLINDER

Return Number

1шт.

2

KBV25230

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-301-00 01

1шт.

2

KBV25230R

REMAN-HYD CYLINDER

CX250C CRAWLER EXCAVATOR TIER 4 (NA), LEFT, WITHOUT SAFETY VALVE

1шт.

2

KBV25230C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV11570

PIN

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

5

157141A1

WASHER

2шт.

6

KBV11560

PIN

1шт.

7

159458A1

ADJUSTING PLATE

4шт.

8

159440A1

COLLAR

2шт.

9

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

2шт.

10

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
