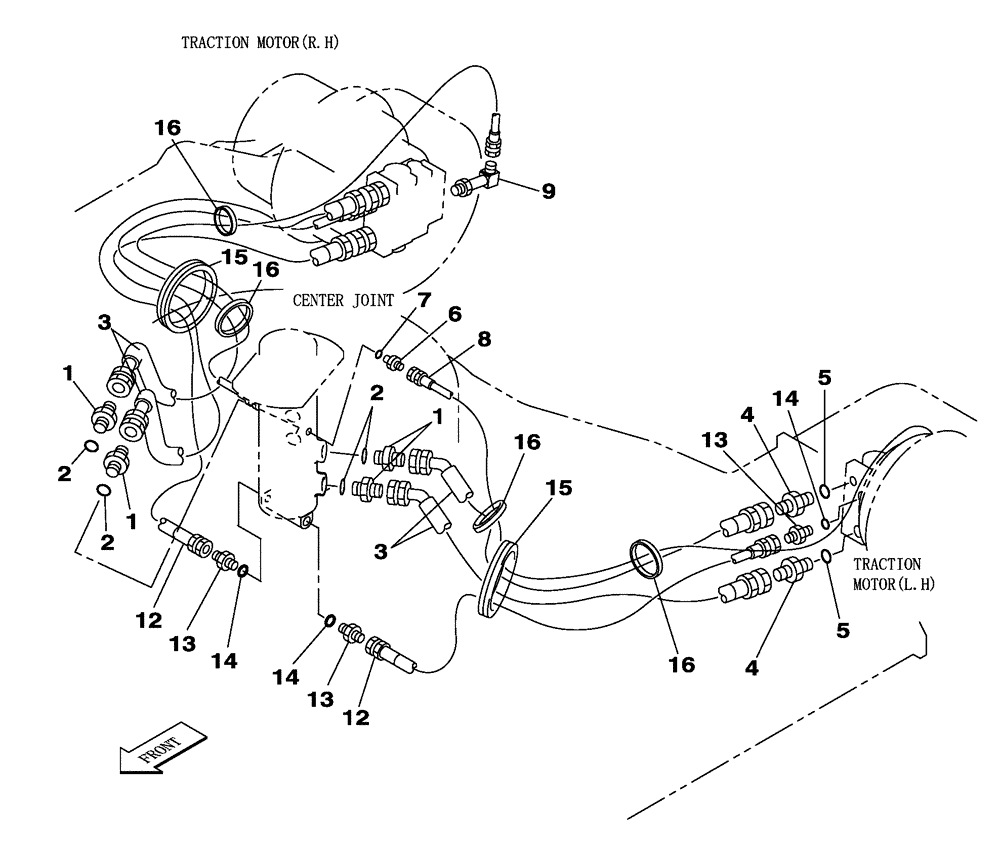

Запчасти Case CX250C (08-007[01]) - HYDRAULIC CIRCUIT - UNDERCARRIAGE - CX250C (08) - HYDRAULICS

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

4шт.

Include(s) 2 - 5

1шт.

2

154503A1

O-RING

1шт.

3

KBA1082

HYDRAULIC HOSE,19mm ID x 2350mm L

4шт.

4

169040A1

ADAPTER

4шт.

Include(s) 5

1шт.

5

154523A1

O-RING

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

157203A1

HOSE,2800.00 mm

2800 mm

2шт.

9

KHJ1178

ELBOW

2шт.

12

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

4шт.

Include(s) 14

1шт.

14

154487A1

O-RING

1шт.

15

159398A1

RUBBER BLOCK

430 mm

2шт.

16

150071A1

MOUNTING CLIP

380 mm

4шт.
