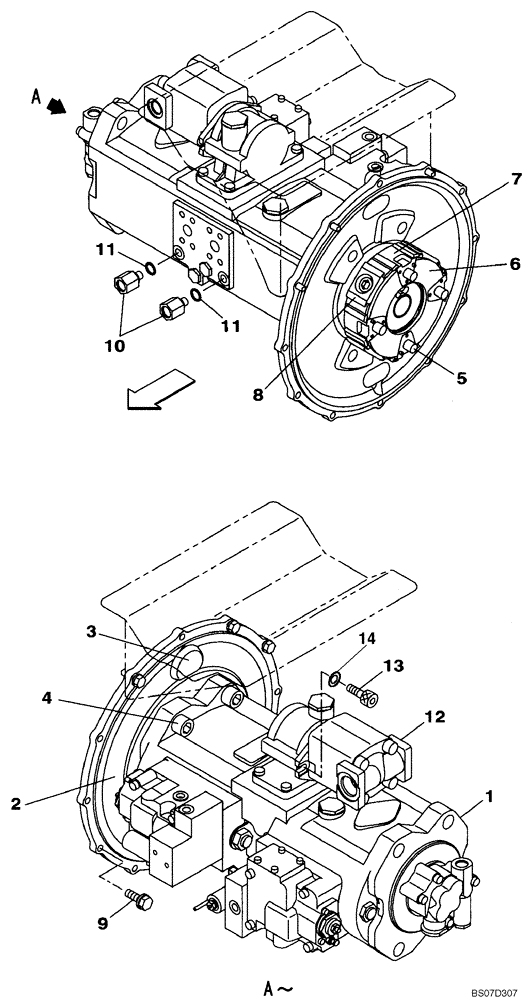

Запчасти Case CX250C (08-003[00]) - PUMP ASSY, HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KBJ12360

HYDRAULIC PUMP

See Figure 08-096 - 08-100

1шт.

2

166370A1

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

5

KRJ10340

COUPLING

Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Element

1шт.

7

NSS

NOT SOLD SEPARAT

Insert

4шт.

8

NSS

NOT SOLD SEPARAT

Insert

1шт.

9

166347A1

BOLT,Sems, M10 x 30mm

9шт.

10

KHJ18180

STUD

Incl. 11, Replaces KHJ11380

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KRJ10300

HYDRAULIC PUMP

See Figure 08-101

1шт.

12

KRJ10300R

REMAN-HYD PUMP

CX250C CRAWLER EXCAVATOR TIER 4 (NA), WITH AUXILIARY HYDRAULIC - COUPLING

1шт.

12

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

Replaces KHJ15090, 862-10030

2шт.

14

150409A1

WASHER

2шт.

15

154697A1

O-RING

Not Illustrated

2шт.
