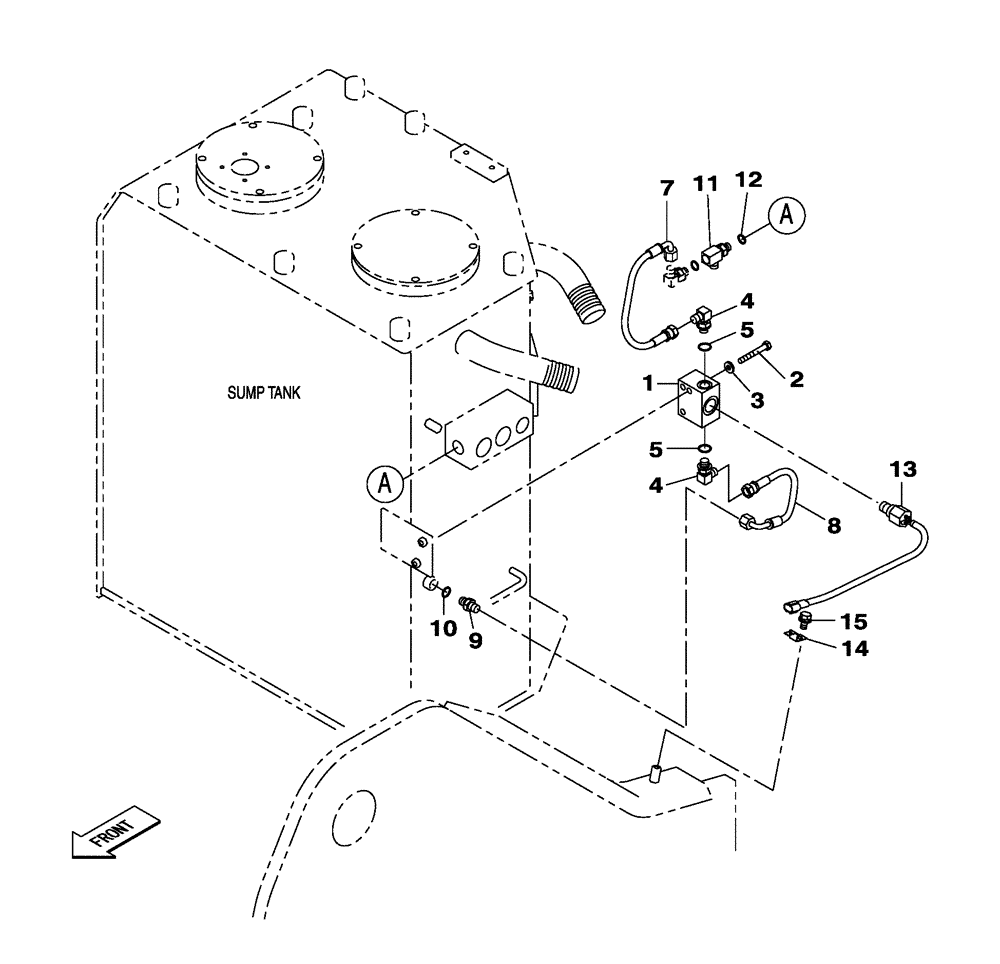

Запчасти Case CX250C (08-001[02]) - HYDRAULIC RESERVOIR - OPTIONAL (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

Include(s) 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2238

HOSE

320 mm

1шт.

8

KHJ2291

HOSE

240 mm

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ2773

TEE

1шт.

Include(s) 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KHR14470

PRESSURE SWITCH

, Serial Range: -NCSAM1213

1шт.

13

KHR32870

SENSOR

, Start Serial: NCSAM1214

1шт.

14

158962A1

CLIP

1шт.

15

167518A1

BOLT

M8 x 16

1шт.
