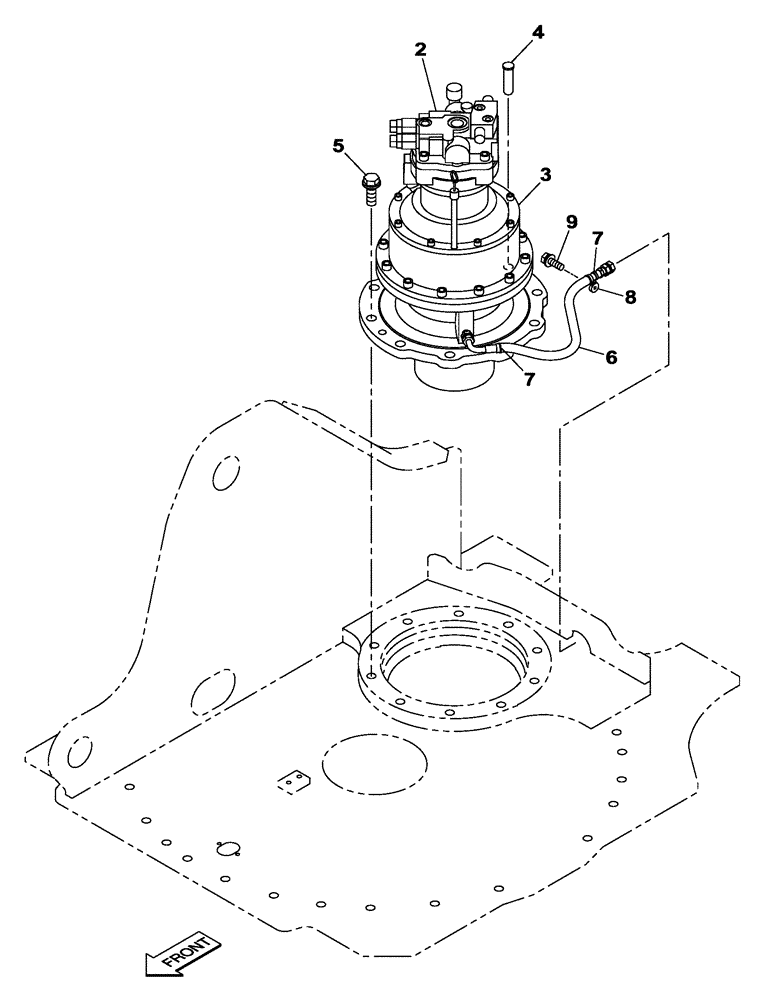

Запчасти Case CX250C (06-005[00]) - SWING MOTOR-DRIVE REDUCTION GEAR (06) - POWER TRAIN

2

KBC10020

MOTO-REDUCTION GEAR

1шт.

See Figure(s) 08-220-00 01

1шт.

2

KBC10020R

REMAN-HYD MOTOR

CX250C CRAWLER EXCAVATOR TIER 4 (NA)

1шт.

2

KBC10020C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KBC10030

REDUCER

1шт.

See Figure(s) 06-011-00 01

1шт.

4

158955A1

HEADED PIN

1шт.

5

105R024Y070R

BOLT

M24 x 70

9шт.

6

150488A1

PLASTIC-RUBBER TUBE

1шт.

7

150067A1

MOUNTING CLIP

1шт.

8

KHR2584

CLAMP

1шт.

9

KHJ1215

BOLT,Spcl

M8 x 25

1шт.
