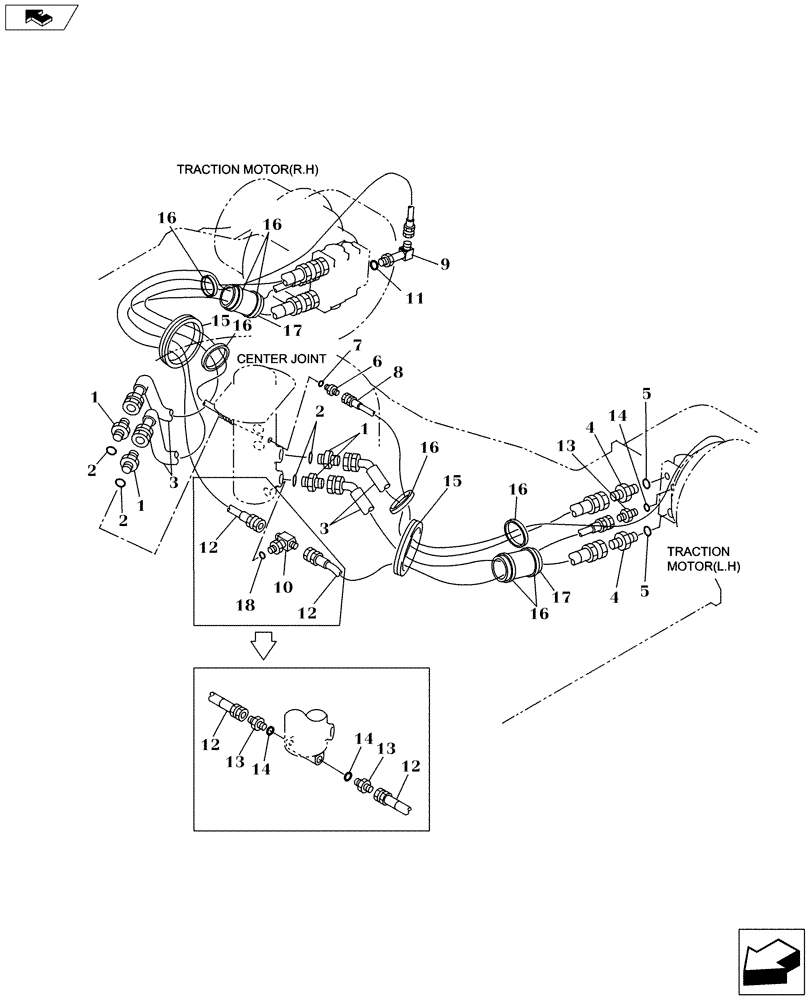

Запчасти Case CX235C SR (35.310.09) - HYD. LINE - TRACTION MOTOR (35) - HYDRAULIC SYSTEMS

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Adapter, Hose, Incl 2

4шт.

2

154503A1

O-RING

4шт.

3

KRA1416

HYDRAULIC HOSE

4шт.

4

169040A1

ADAPTER

Incl 5

4шт.

5

154523A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Incl 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

8

151895A1

HOSE,2450.00 mm

Nylon

2шт.

9

KHJ1178

ELBOW

2шт.

10

165933A1

HYDRAULIC HOSE,12.70 mm ID x 1960.00 mm

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

12

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Adapter, Hose, Incl 11

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Adapter, Hose, Incl 14

4шт.

14

154487A1

O-RING

4шт.

15

160414A1

RUBBER BLOCK

Cushion, Rubber

2шт.

16

150071A1

MOUNTING CLIP

4шт.

17

NSS

NOT SOLD SEPARAT

Plate, Rubber, Incl In Upper Assy

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Incl In Upper Assy

1шт.
