Запчасти Case CX235C SR (35.310.08) - HYD. LINE - TRACTION MOTOR LINE BLADE (HBCV) (35) - HYDRAULIC SYSTEMS

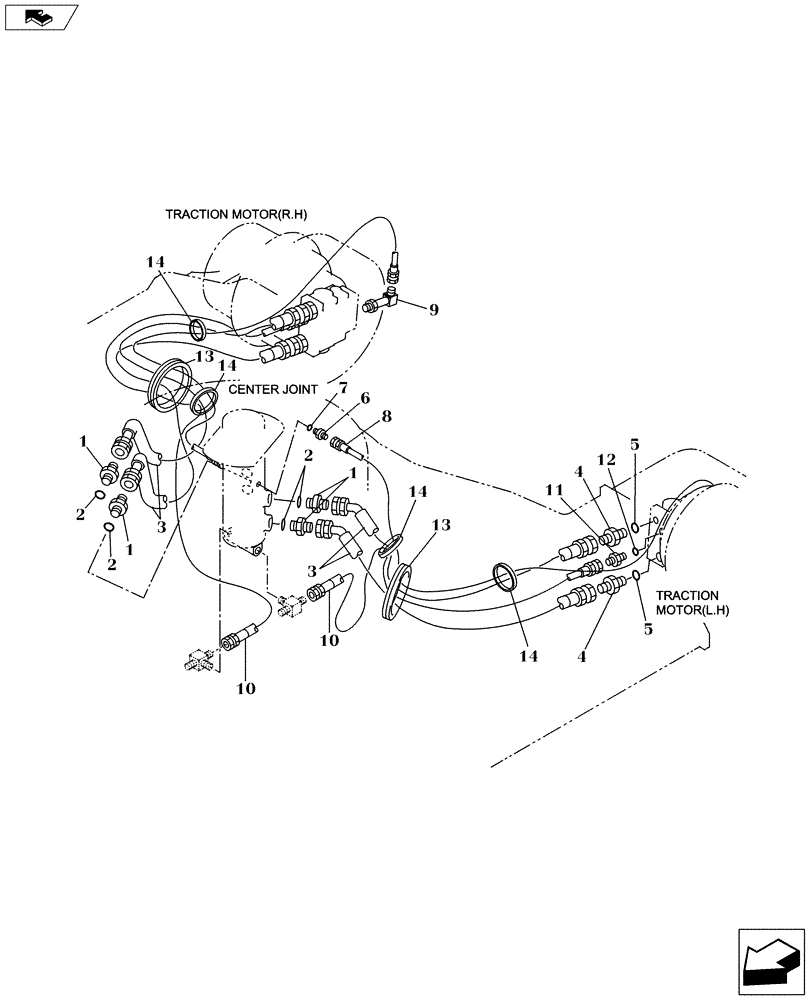

Схема запчастей Case CX235C SR - (35.310.08) - HYD. LINE - TRACTION MOTOR LINE BLADE (HBCV) (35) - HYDRAULIC SYSTEMS
10
8
4
14
14
6
5
14
3
10
5
2
1
2
7
13
1
12
3
2
11
14
13
9
4
1

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Adapter, Hose, Incl 2

4шт.

2

154503A1

O-RING

4шт.

3

KRA1416

HYDRAULIC HOSE

4шт.

4

169040A1

ADAPTER

Hose, Incl 5

4шт.

5

154523A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Hose, Incl 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

8

151895A1

HOSE,2450.00 mm

Nylon

2шт.

9

KHJ1178

ELBOW

2шт.

10

165933A1

HYDRAULIC HOSE,12.70 mm ID x 1960.00 mm

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Adapter, Hose, Incl 12

2шт.

12

154487A1

O-RING

2шт.

13

160414A1

RUBBER BLOCK

Cushion, Rubber

2шт.

14

150071A1

MOUNTING CLIP

4шт.

Выбрано товаров: 14
