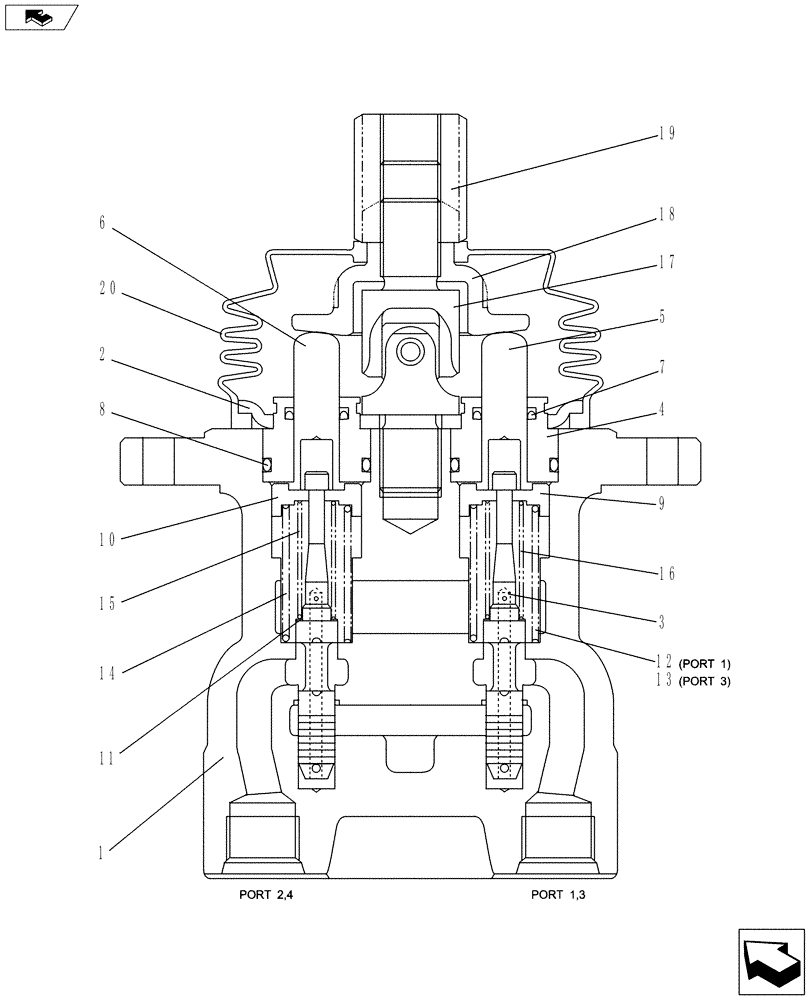

Запчасти Case CX235C SR (35.204.02) - REMOTE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

0

KHJ13291

CONTROL BLOCK

Incl 2, 4 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

2

LR00537

PLATE

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

4шт.

4

160070A1

PLUG

4шт.

5

160026A1

THREADED ROD

Push Ports 1 And 3

2шт.

6

160027A1

THREADED ROD

Push Ports 2 And 4

2шт.

7

CDP0818

OIL SEAL

4шт.

8

154491A1

O-RING

4шт.

9

LR00538

SPRING SEAT

2шт.

10

LR00539

SPRING SEAT

2шт.

11

LA00057

SET OF WASHERS

4шт.

12

LG005470

SPRING

1шт.

13

LG005480

SPRING

1шт.

14

LG005490

SPRING

2шт.

15

LG00312

COMPRESSION SPRING

2шт.

16

LG00313

COMPRESSION SPRING

2шт.

17

155255A1

FLEXIBLE JOINT

1шт.

18

LR00540

PLATE

1шт.

19

156165A1

NUT

adj

1шт.

20

LQ000580

BELLOWS

1шт.
