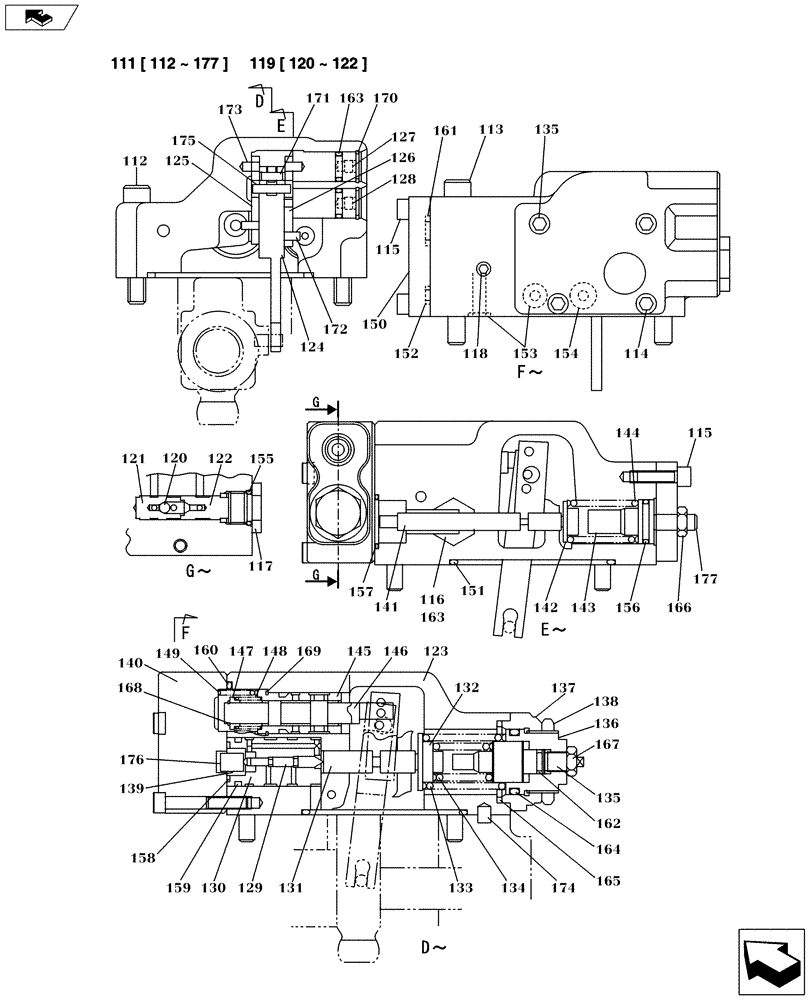

Запчасти Case CX235C SR (35.106.02[04]) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

0

KRJ10290

HYDRAULIC PUMP

1шт.

0

KRJ10290R

REMAN-HYD PUMP

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

0

KRJ10290C

CORE-HYDRAULIC PUMP

Return Number

1шт.

111

LL001680

REGULATOR

Incl 112 - 119, 151 - 168, 170, 177

1шт.

112

108R008Z050N

BOLT

2шт.

113

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

M8X70 12.9 BLO

2шт.

114

108R006Z040R

BOLT

4шт.

115

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

M6X20 12.9 ZND

8шт.

116

155496A1

PLUG

1шт.

117

TLM0023

PLUG

1шт.

118

LK00003

PLUG

6шт.

119

LJ014480

VALVE SECTION

1шт.

120

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

121

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

122

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

123

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

124

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

125

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

126

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

127

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

128

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

129

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

130

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

131

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

132

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

133

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

134

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

135

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

136

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

137

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

138

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

139

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

140

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

141

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

142

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

143

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

144

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

145

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

146

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

147

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

148

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

149

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

150

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

151

LE013390

O-RING

1шт.

152

LE013460

O-RING

3шт.

153

LE013470

O-RING

9шт.

154

LE013400

O-RING

1шт.

155

LE013490

O-RING

1шт.

156

154489A1

O-RING

1шт.

157

LE00608

O-RING

1шт.

158

LE013420

O-RING

1шт.

159

LE013550

O-RING

4шт.

160

LE013380

O-RING

1шт.

161

LE013520

O-RING

1шт.

162

LE013540

O-RING

1шт.

163

LE013410

O-RING

3шт.

164

LE013450

O-RING

1шт.

165

154553A1

O-RING

1шт.

166

LA00065

JAM NUT

1шт.

167

LA010640

JAM NUT

1шт.

168

800-1110

SNAP RING,M10, Ext

RETAIN EXT REG 10MM PLN

1шт.

169

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

170

800-2115

SNAP RING,M15, Int

RETAIN INT REG 15MM PLN

2шт.

171

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

172

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

173

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

174

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

175

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

176

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

177

LA00759

BOLT,Hex Skt Hd

1шт.
