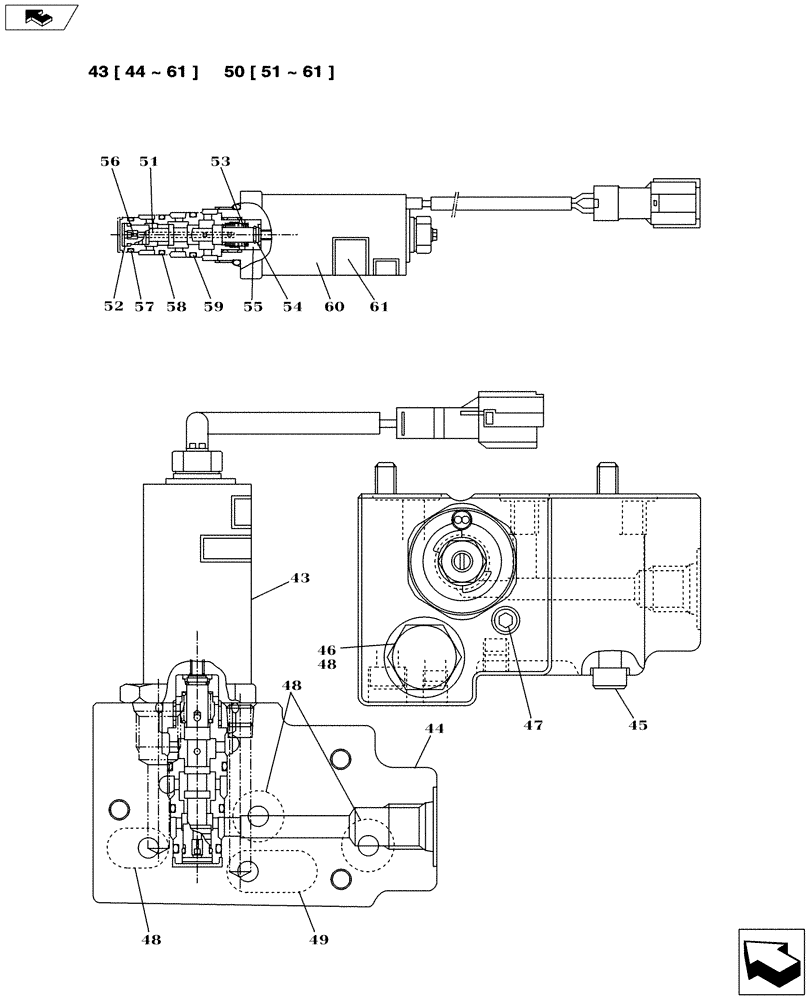

Запчасти Case CX235C SR (35.106.02[03]) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX235C SR - (35.106.02[03]) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/751389.png)
№
Артикул
Название
Примечание
Количество
0
KRJ10290R
REMAN-HYD PUMP
CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)
1шт.
0
KRJ10290C
CORE-HYDRAULIC PUMP
Return Number
1шт.
43
LJ014460
VALVE SECTION
Incl 45 - 49, 52
1шт.
44
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
45
862-6060
HEX SOC SCREW,M6 x 60mm, Cl 12.9
M6X60 12.9 ZND
3шт.
46
155496A1
PLUG
1шт.
47
LK00003
PLUG
3шт.
48
LE013410
O-RING
4шт.
49
LE013420
O-RING
1шт.
50
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
51
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
52
LJ00684
SOLENOID VALVE
1шт.
53
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
54
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
55
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
56
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
57
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
58
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
59
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
60
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
61
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
Выбрано товаров: 22
