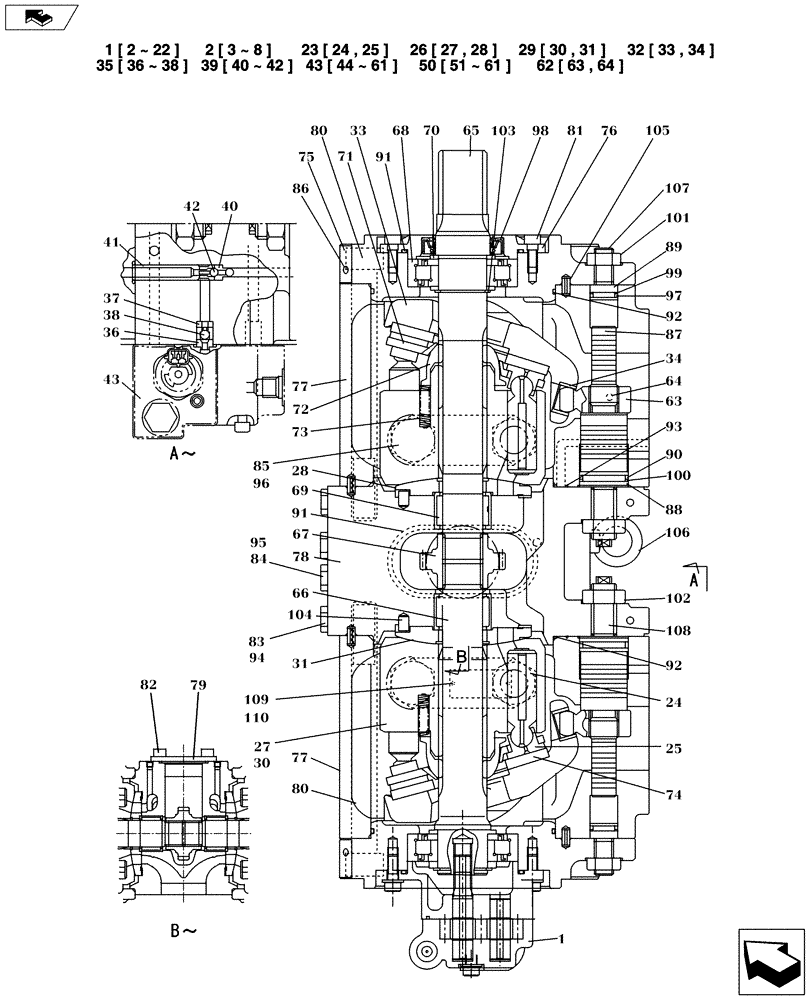

Запчасти Case CX235C SR (35.106.02[01]) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

0

KRJ10290

HYDRAULIC PUMP

1шт.

0

KRJ10290R

REMAN-HYD PUMP

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

0

KRJ10290C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ014510

HYDRAULIC PUMP

Incl 2, 22

1шт.

1

LJ014510R

REMAN-HYD PUMP

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

1

LJ014510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002870

GEAR

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

22

163668A1

RING, LOCKING

RING, LOCK

1шт.

23

TJ00765

PISTON

2шт.

24

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

18шт.

25

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

18шт.

26

LJ014500

BARREL

1шт.

27

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

28

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

29

LJ014490

BARREL

1шт.

30

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

31

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

32

LR00552

PLATE

2шт.

33

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

34

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

35

TNP0022

VALVE

2шт.

36

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

37

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

38

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

39

TNP0023

VALVE

2шт.

40

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

41

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

42

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

43

LJ014460

VALVE SECTION

1шт.

50

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

51

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

61

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

62

160161A1

LEVER ASSY.

Pin

2шт.

63

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

64

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

65

160033A1

DRIVE SHAFT

Front

1шт.

66

160034A1

DRIVE SHAFT

Rear

1шт.

67

LB00535

COUPLING

1шт.

68

TB00026

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

69

TB00082

NEEDLE BEARING,35 mm ID x 47 mm OD x 30 mm

2шт.

70

156963A1

SPACER

4шт.

71

TR00047

PLATE

2шт.

72

169288A1

BUSHING

Spherical

2шт.

73

156960A1

SPRING

18шт.

74

160113A1

PLATE

Shoe

2шт.

75

TPP0080

SUPPORT

2шт.

76

160334A1

COVER

Seal

1шт.

77

LJ014520

HYDRAULIC PUMP

2шт.

78

TJ00067

VALVE BLOCK

1шт.

79

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

80

167078A1

BOLT,M8 x 40mm, Cl 12.9

Bolt, HEX SOC HD

8шт.

81

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

M8X20 12.9 BLO

4шт.

82

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

M10X20 12.9 PHC

4шт.

83

155496A1

PLUG

2шт.

84

TLM0023

PLUG

2шт.

85

155471A1

PLUG

4шт.

86

LK00003

PLUG

27шт.

87

TJ00066

PISTON

2шт.

88

TG00286

STOP LOCK

2шт.

89

161116A1

COVER

Stopper

2шт.

90

154553A1

O-RING

2шт.

91

LE013510

O-RING

2шт.

92

LE013500

O-RING

4шт.

93

LE013470

O-RING

16шт.

94

LE013410

O-RING

6шт.

95

LE013490

O-RING

2шт.

96

LE013440

O-RING

4шт.

97

154489A1

O-RING

2шт.

98

LE018730

OIL SEAL

1шт.

99

153970A1

BACK-UP RING

2шт.

100

154017A1

BACK-UP RING

2шт.

101

164R016VR

NUT

2шт.

102

829-1420

NUT,M20, Cl 10

M20 CLASS 10 ZND

2шт.

103

800-1140

SNAP RING,M40, Ext

RETAIN EXT REG 40MM PLN

2шт.

104

156954A1

DOWEL

Plate

2шт.

105

338W060Z014B

LINCH PIN

4шт.

106

126R010SR

EYEBOLT

BOLT, EYE

2шт.

107

LA00036

SET SCREW,Hex

2шт.

108

160296A1

SET SCREW

2шт.

109

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

110

LA00027

RIVET

2шт.
