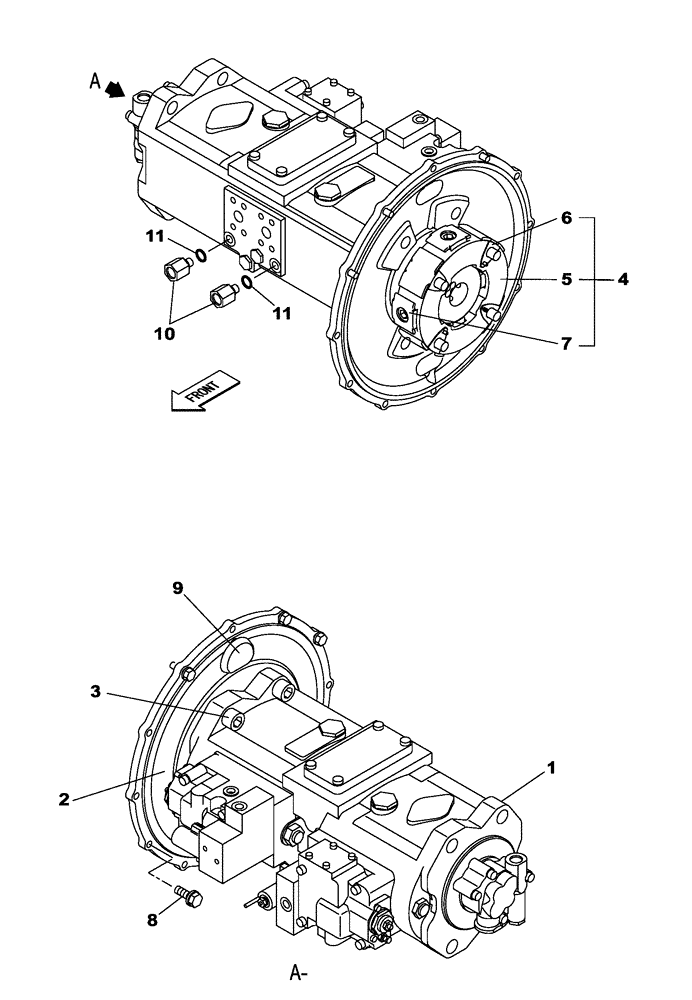

Запчасти Case CX235C SR (35.106.01) - HYDRAULIC PUMP - COUPLING - STANDARD (35) - HYDRAULIC SYSTEMS

1

KRJ10290

HYDRAULIC PUMP

1шт.

1

KRJ10290R

REMAN-HYD PUMP

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA), COUPLING - STANDARD (3/12-)

1шт.

1

KRJ10290C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166370A1

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

4

KRJ29521

HYDRAULIC PUMP

Incl 5 - 7

1шт.

5

KRJ10650

COUPLING

1шт.

6

KRJ10660

INSERT

4шт.

7

KRJ10670

INSERT

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

10шт.

9

KHJ2656

GROMMET

2шт.

10

KHJ18180

STUD

Incl 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

12

KHJ0719

ELBOW

Not Shown

2шт.
