/ / / / / / / / (10.218.04[01]) - FUEL SYSTEM - FUEL INJECTION PUMP

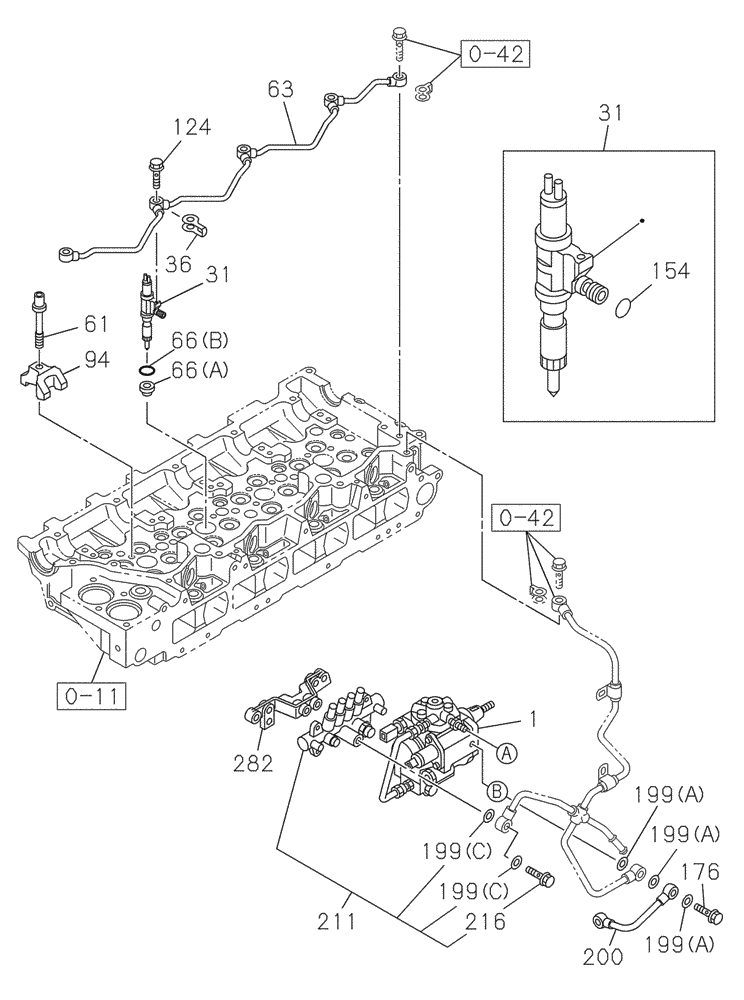

Запчасти Case CX235C SR (10.218.04[01]) - FUEL SYSTEM - FUEL INJECTION PUMP (10) - ENGINE
![Схема запчастей Case CX235C SR - (10.218.04[01]) - FUEL SYSTEM - FUEL INJECTION PUMP (10) - ENGINE](https://partsell.ru/storage/images/casece/906037.png)
199c
0-42
0-11
36
200
61
199a
199a
66b
282
63
199c
176
211
31
94
66a
31
216
31
0-42
1
124
154
199a
0-11
84389356
CYLINDER HEAD,4 Cylinder
1шт.
0-11
47607716R
REMAN-CYLINDER HEAD
Complete With Valves
1шт.
0-11
47607716C
CORE-CYLINDER HEAD
Return Number
1шт.
0-42
87596960
GASKET
1шт.
1
87560106
FUEL INJECTION PUMP
1шт.
1
87560106R
REMAN-INJECTION PUMP
1шт.
1
87560106C
CORE-INJECTION PUMP
Return Number
1шт.
31
84545030
NOZZLE
Incl 154
4шт.
31
84545030R
REMAN-FUEL INJECTOR
4шт.
31
84545030C
CORE-FUEL INJECTOR
Return Number
4шт.
36
84389334
GASKET
4шт.
61
87378846
BOLT
4шт.
63
87596670
RETURN PIPE
1шт.
66a
72109764
SEAL
4шт.
66b
84362100
GASKET
4шт.
94
87596877
NOZZLE HOLDER
4шт.
124
426418A1
BOLT
4шт.
154
87379795
GASKET
4шт.
176
87379798
BOLT
1шт.
199a
289092A1
GASKET
3шт.
199c
87379800
GASKET
2шт.
200
87596894
TUBE
1шт.
211
87598481
MANIFOLD
Incl 199C, 216
1шт.
216
84292923
EYEBOLT
1шт.
282
84389478
BRACKET, SUPPORTING
1шт.
