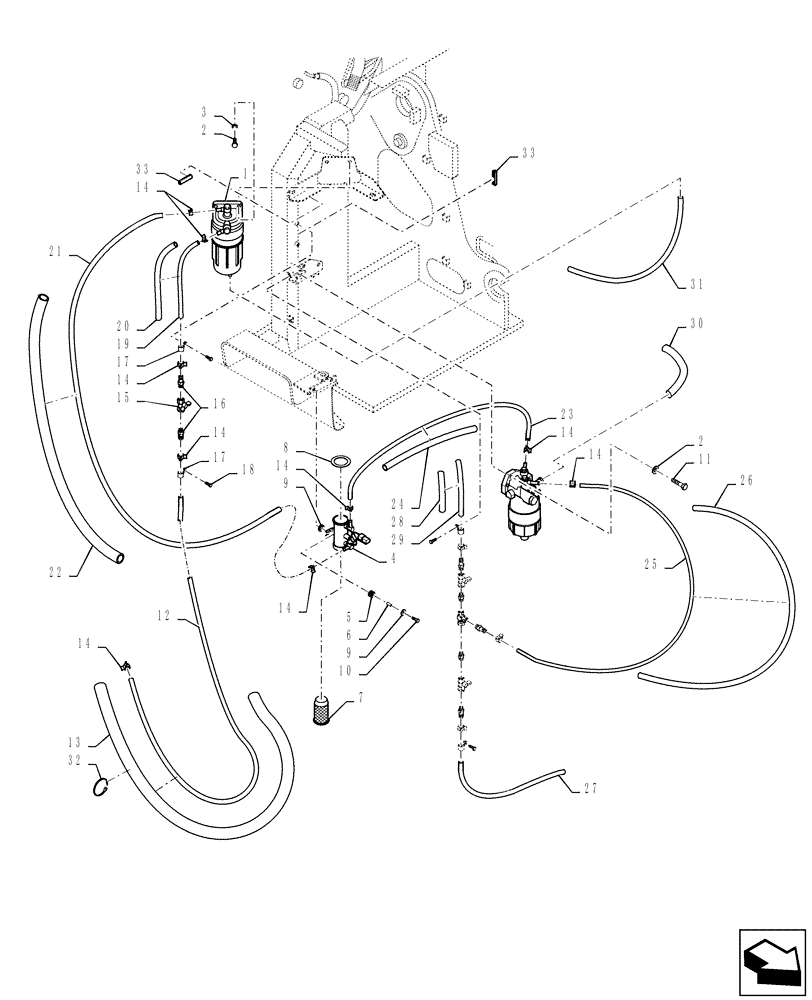

Запчасти Case CX235C SR (10.216.04[01]) - FUEL LINE (10) - ENGINE

1

KHH12020

FILTER ASSY

1шт.

2

153081A1

WASHER

5шт.

3

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

4

KHH11880

FEED PUMP

Incl 5 - 8

1шт.

5

KHH10470

GROMMET

2шт.

6

KHH10480

COLLAR

2шт.

7

KHH11890

FILTER SCREEN

1шт.

8

KHH11900

GASKET

1шт.

9

150529A1

WASHER

4шт.

10

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

11

102R008Y040R

BOLT

1шт.

12

KHH0507

HOSE

1шт.

13

KHR19790

PLASTIC-RUBBER TUBE

1шт.

14

KHH0405

MOUNTING CLIP

10шт.

15

158923A1

DRAIN VALVE

1шт.

16

157929A1

FITTING

2шт.

17

162148A1

CLIP

2шт.

18

167320A1

BOLT,Spcl, M8 x 20mm

2шт.

19

KHH14760

HOSE

1шт.

20

NSS

NOT SOLD SEPARAT

Tube, Incl in Upper Assy

1шт.

21

KHH14770

HOSE

1шт.

22

NSS

NOT SOLD SEPARAT

Tube, Incl in Upper Assy

1шт.

23

KHH11020

HYDRAULIC HOSE,9.70 mm ID x 750.00 mm

1шт.

24

150488A1

PLASTIC-RUBBER TUBE

1шт.

25

KHH14780

HOSE

1шт.

26

KHR4065

PLASTIC-RUBBER TUBE

1шт.

27

KHH11990

HOSE

1шт.

28

KHH14790

HOSE

1шт.

29

KHR3357

PLASTIC-RUBBER TUBE

1шт.

30

KHH10290

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

1шт.

31

KHH11510

PLASTIC-RUBBER TUBE

1шт.

32

KRH15700

SEAL

1шт.

33

HEH0026

RUBBER SEAL

2шт.
