(90.160.02) - COVER ASSY

Запчасти Case CX235C SR (90.160.02) - COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

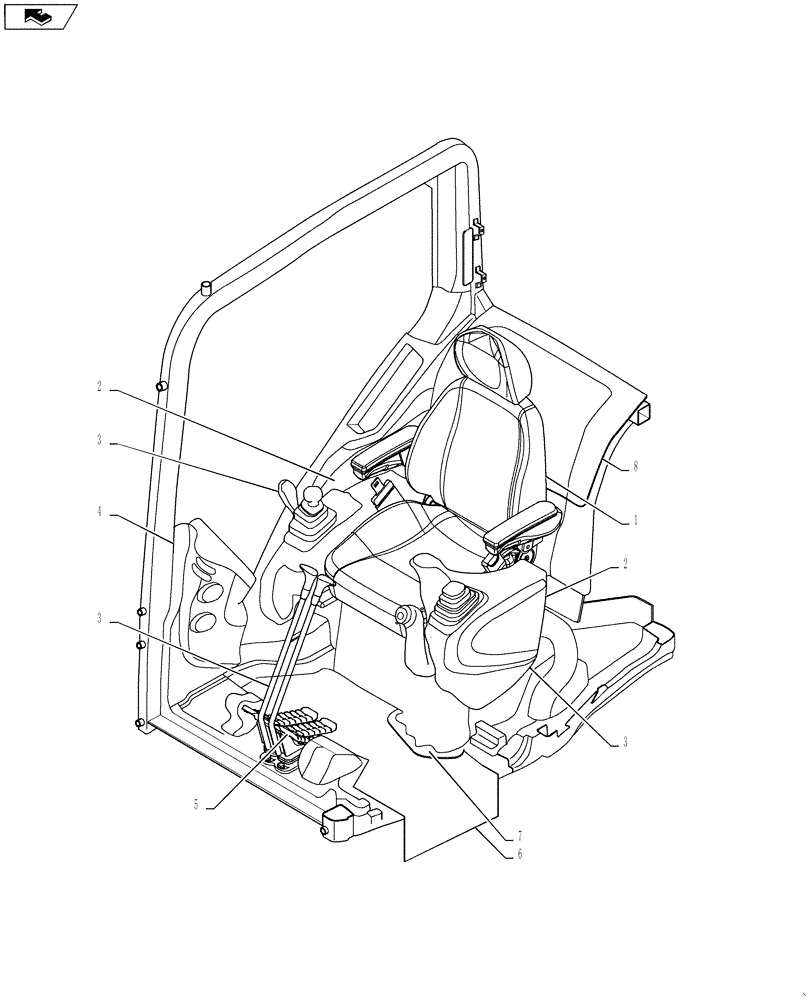

Схема запчастей Case CX235C SR - (90.160.02) - COVER ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
2
6
3
8
7
1
3
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Packing, Incl in Upper Assy

1шт.

2

KHP1441

SKIRT COVER

2шт.

3

163783A1

SKIRT COVER

3шт.

4

KHP1401

SKIRT COVER

1шт.

5

163782A1

SKIRT COVER

2шт.

6

NSS

NOT SOLD SEPARAT

Packing, Incl in Upper Assy

1шт.

7

KHP18970

COVER

1шт.

8

NSS

NOT SOLD SEPARAT

Packing, Incl in Upper Assy

1шт.

Выбрано товаров: 8
