/ / / / / / / / (90.150.01[04]) - CAB (22.5 T)

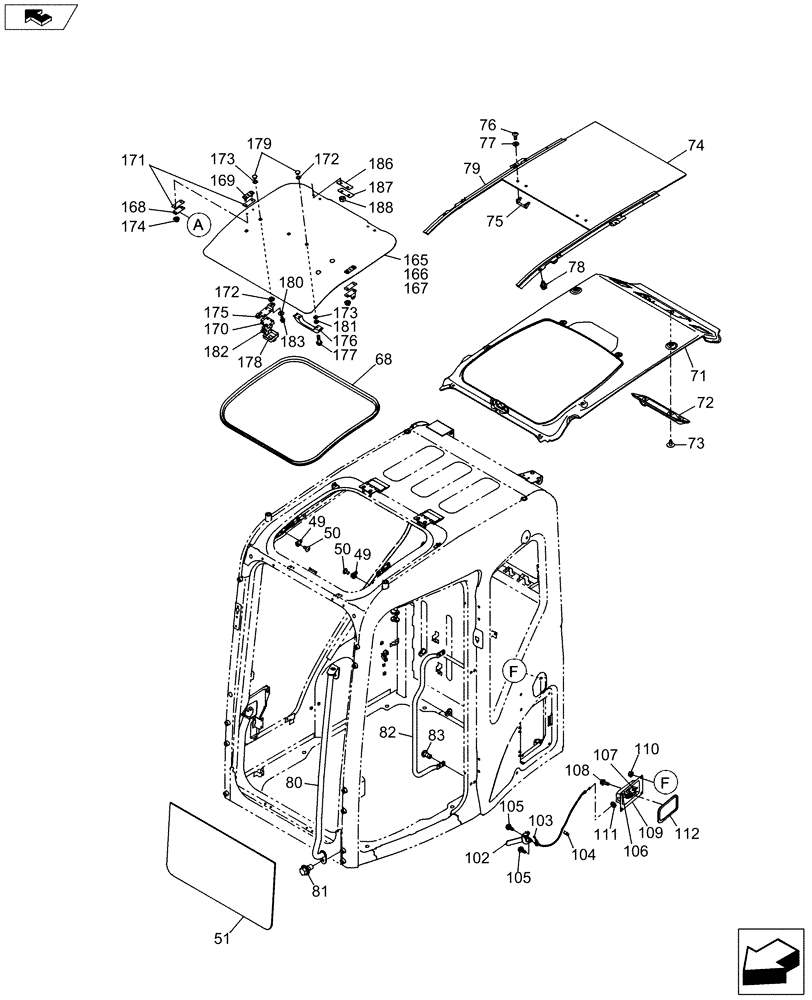

Запчасти Case CX235C SR (90.150.01[04]) - CAB (22.5 T) (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX235C SR - (90.150.01[04]) - CAB (22.5 T) (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/1180203.png)
177
181
49
108
80
179
109
183
180
172
50
186
105
74
112
78
50
176
49
166
73
171
110
182
178
104
79
82
165
103
71
102
168
173
175
68
83
105
75
51
106
169
167
111
72
76
172
77
173
170
81
187
188
107
174
49
KHN30620
STOP
2шт.
50
KHN30630
SCREW
4шт.
51
KHN30640
GLASS
1шт.
68
KHN30870
SEAL
1шт.
71
KHN30980
PAD
1шт.
72
KHN30990
COVER
1шт.
73
KHN31000
CLIP
13шт.
74
KHN31050
BRACKET
1шт.
75
KHN31060
HANDLE
2шт.
76
KHN31080
SCREW
4шт.
77
KHN31090
WASHER
4шт.
78
KHN31110
SCREW
4шт.
79
KHN31130
RAIL ASSY.
1шт.
80
KHN31150
RAIL ASSY.
1шт.
81
KHN31160
BOLT
2шт.
82
KHN31170
RAIL ASSY.
1шт.
83
KHN31180
BOLT
4шт.
102
KHN31880
LEVER
1шт.
103
KHN31890
CABLE
1шт.
104
152489A1
CLAMP
1шт.
105
KAN2641
SCREW,Spcl
2шт.
106
152508A1
CLAMP
1шт.
107
KHN31900
CATCH PLATE
1шт.
108
KHN30390
BOLT
2шт.
109
KHN31920
COVER
1шт.
110
KAN2629
SPECIAL NUT
5шт.
111
KHN19390
GROMMET
1шт.
112
KHN31930
SEAL
1шт.
165
KHN30750
ROOF
Assy incl. ref. 166
1шт.
166
KHN30760
ROOF
Assy incl. ref. 167-183
1шт.
167
KHN30770
GLASS
1шт.
168
KHN30790
BRACKET
2шт.
169
KHN30800
BRACKET
2шт.
170
KHN30820
LOCK
2шт.
171
KHN30830
PACKING
4шт.
172
KHN30840
PACKING
4шт.
173
KHN30850
PACKING
8шт.
174
KAN2629
SPECIAL NUT
4шт.
175
KHN30860
BRACKET
2шт.
176
KAN2670
HANDLE
1шт.
177
KHN30890
SCREW
2шт.
178
KHN30900
COVER
2шт.
179
KHN30920
NUT
6шт.
180
KHN30930
WASHER
4шт.
181
KHN30950
RETAINER
2шт.
182
KHN30960
BOLT
8шт.
183
KHN30970
SCREW
4шт.
186
KHN30910
PACKING
4шт.
187
KHN30940
PLATE
2шт.
188
KHN3097
SPECIAL NUT
4шт.
