(90.150.01[03]) - CAB (22.5 T)

Запчасти Case CX235C SR (90.150.01[03]) - CAB (22.5 T) (90) - PLATFORM, CAB, BODYWORK AND DECALS

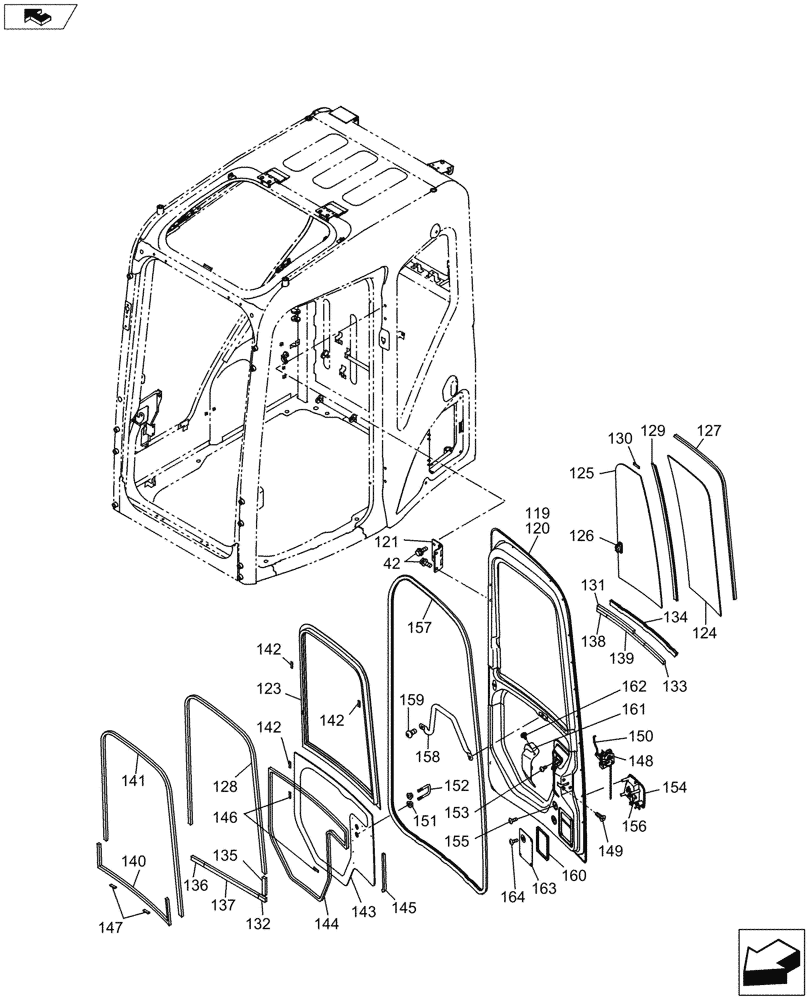

Схема запчастей Case CX235C SR - (90.150.01[03]) - CAB (22.5 T) (90) - PLATFORM, CAB, BODYWORK AND DECALS
136
157
148
142
163
141
133
145
153
127
144
134
119
142
125
139
124
138
123
140
126
129
149
128
151
131
159
155
161
137
132
121
143
142
120
154
152
160
135
164
150
158
162
147
146
42
130
156
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

KHN30560

BOLT

6шт.

119

KHN29800

DOOR

Assy, Incl 120,121

1шт.

120

KHN29830

DOOR

1шт.

121

KHN29840

HINGE

1шт.

123

KHN31660

WINDOW FRAME

1шт.

124

KHN31670

GLASS

1шт.

125

KHN31680

GLASS

1шт.

126

KHN31690

LOCK

1шт.

127

KHN31700

RAIL ASSY.

1шт.

128

KHN31710

RAIL ASSY.

1шт.

129

KHN31720

SEAL

1шт.

130

KHN31730

STOP

1шт.

131

KHN31740

STOP

1шт.

132

KHN31750

STOP

1шт.

133

KHN31760

STOP

1шт.

134

KHN33920

RAIL ASSY.

1шт.

135

KHN33930

SEAL

1шт.

136

KHN33940

SPACER

1шт.

137

KHN33950

SPACER

1шт.

138

KHN33960

SPACER

1шт.

139

KHN33970

SPACER

1шт.

140

KHN31770

SEAL

1шт.

141

KHN31780

SEAL

1шт.

142

KHN31790

TRIM

8шт.

143

KHN31800

GLASS

1шт.

144

KHN31810

SEAL

1шт.

145

KHN31820

SEAL

1шт.

146

KHN31830

SPACER

4шт.

147

KAN2662

SPACER

2шт.

148

KHN31840

LH DOOR LOCK

Incl 150

1шт.

149

KHN31870

BOLT

3шт.

150

NSS

NOT SOLD SEPARAT

Incl in 148

1шт.

151

KHN3097

SPECIAL NUT

4шт.

152

KHN31910

STRIKER

1шт.

153

KAN2641

SCREW,Spcl

3шт.

154

KHN15570

HANDLE

Outside

1шт.

155

KHN3051

SCREW,Spcl

3шт.

156

KHN15650

RUBBER JOINT

1шт.

157

KHN31950

SEAL

1шт.

158

KHN31960

RAIL ASSY.

1шт.

159

KHN31970

BOLT

2шт.

160

KHN31980

SEAL

1шт.

161

KHN31990

COVER

3шт.

162

KHN30520

PIN

3шт.

163

KHN32000

COVER

1шт.

164

KHN3051

SCREW,Spcl

3шт.

KHN31940

KNOB

Assembly, (Not Shown) Installed Under ref# 161

1шт.

Includes Plastic Knob, Shaft it attaches to, Return Spring, and Plate that Attaches to Door

1шт.
