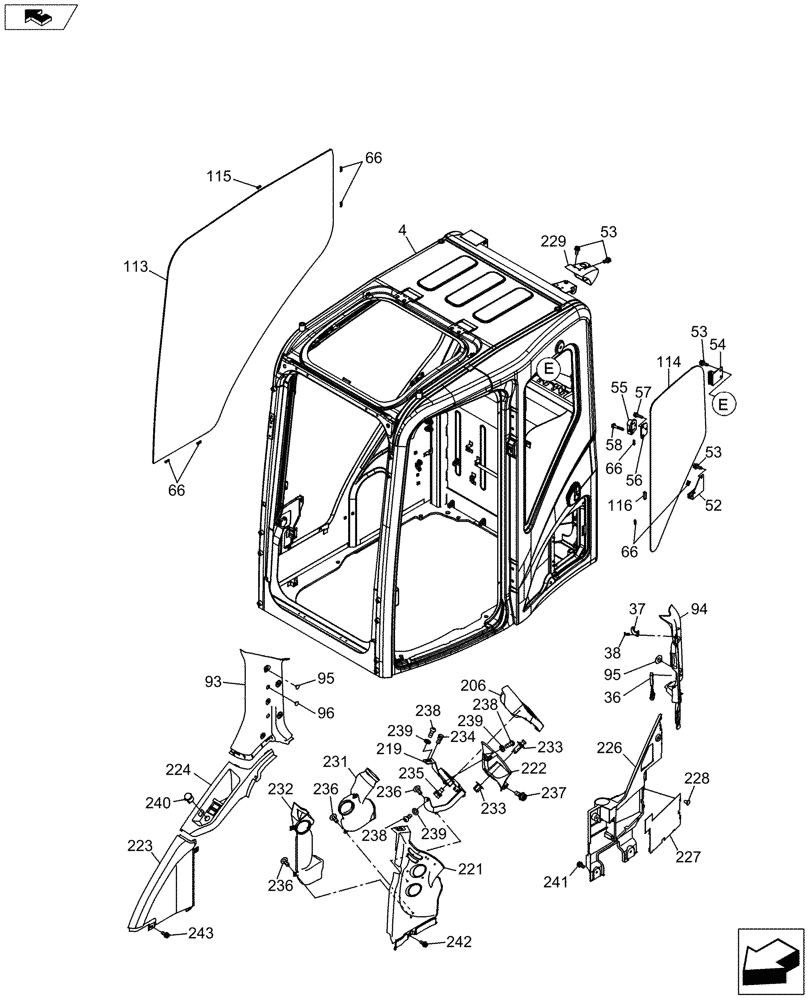

Запчасти Case CX235C SR (90.150.01[02]) - CAB (22.5 T) (90) - PLATFORM, CAB, BODYWORK AND DECALS

4

NSS

NOT SOLD SEPARAT

Cab, Operators, Incl in Upper Assy

1шт.

36

KHN25950

HAMMER

1шт.

37

KHN30340

HOOK

1шт.

38

KHN30350

SCREW

2шт.

52

KHN30650

BRACKET

1шт.

53

KAN1514

SCREW

4шт.

54

KHN30660

BRACKET

1шт.

55

KHN2680

LATCH HOOK

1шт.

56

KHN3088

PLATE

1шт.

57

KHN3089

SCREW,Spcl

1шт.

58

KHN3090

SCREW,Spcl

2шт.

66

KHN30730

SPACER

9шт.

93

KHN31540

TRIM

1шт.

94

KHN31550

TRIM

1шт.

95

KHN31580

CLIP

9шт.

96

KHN31590

CLIP

2шт.

113

KHN32020

GLASS

1шт.

114

KHN32030

GLASS

1шт.

115

KHN32040

SEAL

1шт.

116

KHN32050

SEAL

1шт.

206

KHR23593

CONTROL MONITOR

1шт.

206

KHR23593R

REMAN-INSTR CLUSTER

1шт.

206

KHR23593C

CORE-CLUSTER, INSTR

Return Number

1шт.

219

KHR21690

BRACKET

1шт.

221

KHN31340

TRIM

Front LH

1шт.

222

KHN31350

TRIM

Front RH

1шт.

223

KHN31360

TRIM

1шт.

224

KHN31370

TRIM

1шт.

226

KHN32980

TRIM

1шт.

227

KHN32970

TRIM

1шт.

228

KHR2735

SELF-TAP SCREW

4шт.

229

KHN27450

COVER

1шт.

231

KHR30510

DUCT

1шт.

232

KHR30520

DUCT

1шт.

233

KHR11210

CIGARETTE LIGHTER

1шт.

234

KHR10540

SENSOR

1шт.

235

KHN31490

BOLT

4шт.

236

KHN31500

SCREW

8шт.

237

KHN31510

BOLT

3шт.

238

KHN31180

BOLT

3шт.

239

KHN30450

WASHER

4шт.

240

KHR2501

SOCKET

1шт.

241

KHR31510

JOINT

10шт.

242

KHR30510

DUCT

1шт.

243

KAN1514

SCREW

3шт.
