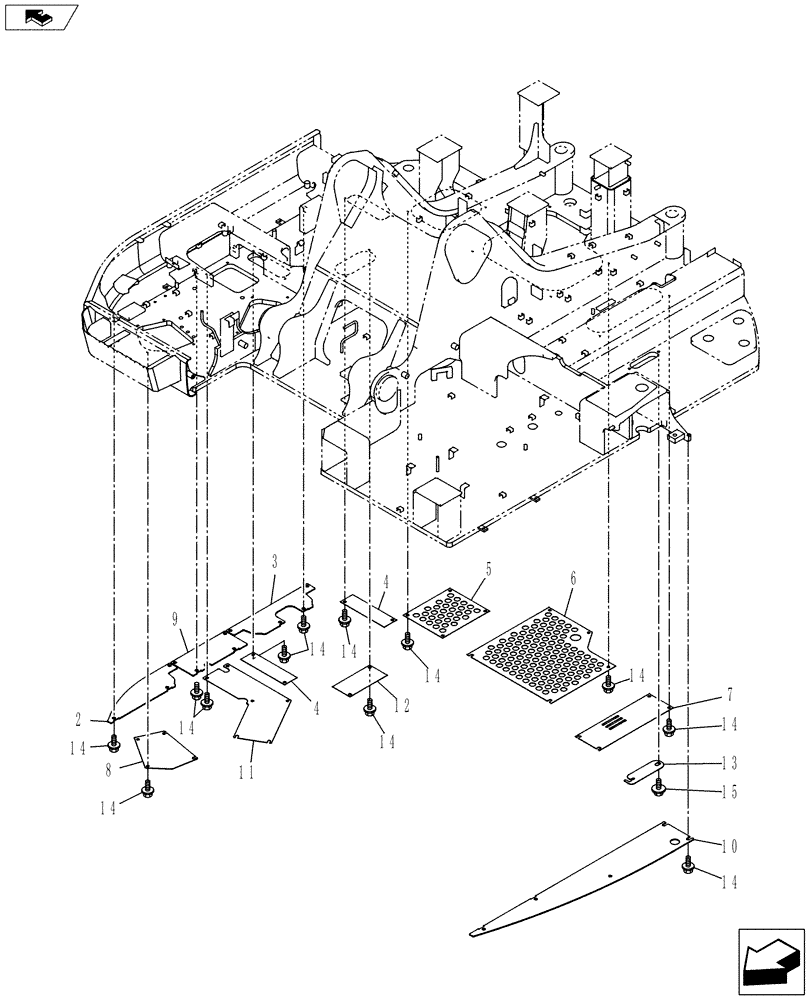

Запчасти Case CX235C SR (90.130.01) - UPPER UNDER COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
14
7
14
2
4
14
13
14
5
8
14
12
14
3
6
9
4
14
11
14
10
15
14
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
Cover, Under, Incl in Upper Assy, Incl 2 - 13
1шт.
2
KRB20740
COVER
Under
1шт.
3
KRB20750
COVER
Under
1шт.
4
KRB20770
COVER
Under
2шт.
5
KRB20780
COVER
Under
1шт.
6
KRB20790
COVER
Under
1шт.
7
KRB20530
COVER
Under
1шт.
8
KRB20760
COVER
Under
1шт.
9
KRB20800
COVER
Under
1шт.
10
KRB18950
COVER
Under
1шт.
11
KRB18990
COVER
Under
1шт.
12
KRB19440
COVER
Under
1шт.
13
KRB21320
COVER
Under
1шт.
14
KHN3029
BOLT,Spcl
Spl
45шт.
15
158919A1
CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl
Spl
2шт.
