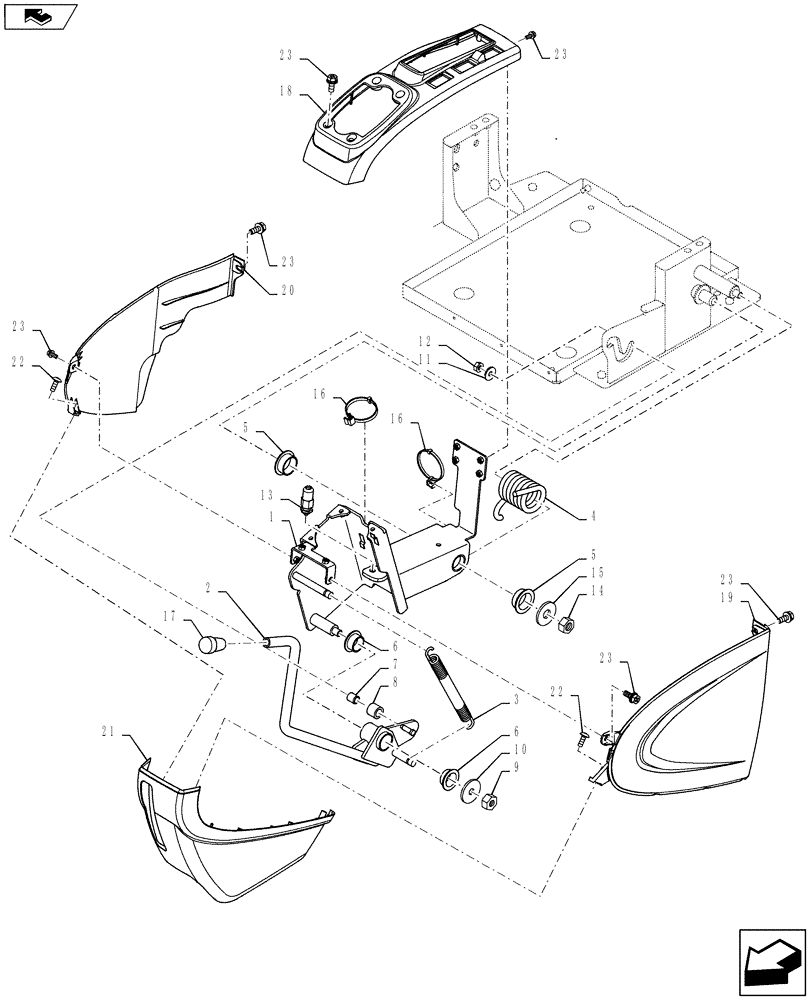

Запчасти Case CX235C SR (90.120.01[04]) - CAB - CONSOLE & SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN32240

FRAME

1шт.

2

KHN32250

LEVER

1шт.

3

KHN32260

TENSION SPRING

1шт.

4

KHN32270

TORSION SPRING

1шт.

5

KHN2261

BUSHING

2шт.

6

HKJ0081

BUSHING

2шт.

7

KHJ1796

BUSHING

1шт.

8

KHJ1795

NEEDLE BEARING

1шт.

9

829-1412

NUT,M12, Cl 10.9

1шт.

10

151161A1

WASHER

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

13

KHR14930

LIMIT SWITCH

1шт.

14

829-1412

NUT,M12, Cl 10.9

1шт.

15

151161A1

WASHER

1шт.

16

KHN17050

CLIP

4шт.

17

KHN32130

KNOB

1шт.

18

KHN32510

COVER

1шт.

19

KHN32530

COVER

1шт.

20

KHN32540

COVER

1шт.

21

KHN32550

COVER

1шт.

22

KHR2737

SELF-TAP SCREW

5шт.

23

KHN2132

BOLT,Hex Flg Hd, M6 x 16

16шт.
