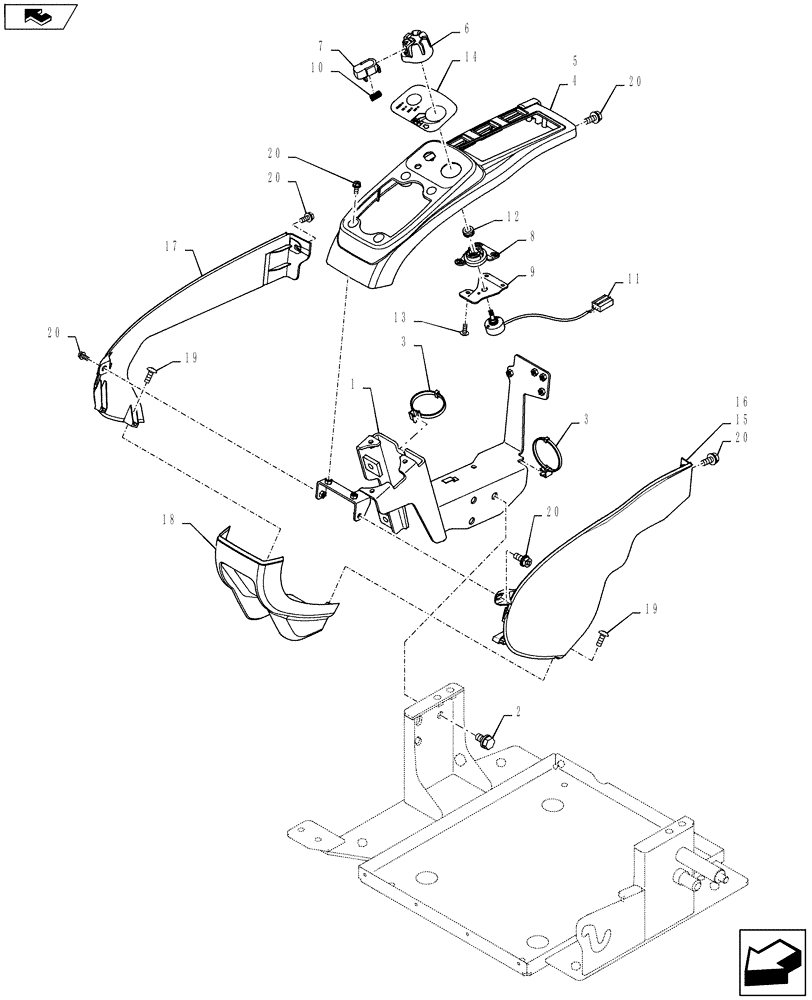

Запчасти Case CX235C SR (90.120.01[03]) - CAB - CONSOLE & SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX235C SR - (90.120.01[03]) - CAB - CONSOLE & SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/794368.png)
17
10
4
7
home
12
20
3
6
8
9
20
14
20
2
13
15
5
1
18
20
16
11
20
3
19
19
20
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KHN32220
FRAME
1шт.
2
166351A1
BOLT,Sems, M10 x 20mm
3шт.
3
KHN17050
CLIP
4шт.
4
KHN32440
COVER
1шт.
5
KHN32450
COVER
1шт.
6
KHN15100
BUTTON
1шт.
7
KHN15110
BUTTON
1шт.
8
KHN15120
ELEC SUPPORT PLATE
1шт.
9
KHN15130
BRACKET
1шт.
10
KHN15140
SPRING
1шт.
11
KHR2751
SWITCH
1шт.
12
KHR2741
PACKING
1шт.
13
KHR2737
SELF-TAP SCREW
3шт.
14
KHN26260
PANEL
1шт.
15
NSS
NOT SOLD SEPARAT
Cover, Under, Incl in Upper Assy
1шт.
16
KHN32470
COVER
1шт.
17
KHN32480
COVER
1шт.
18
KHR2737
SELF-TAP SCREW
1шт.
19
KHR2737
SELF-TAP SCREW
4шт.
20
KHN2132
BOLT,Hex Flg Hd, M6 x 16
16шт.
Выбрано товаров: 20
