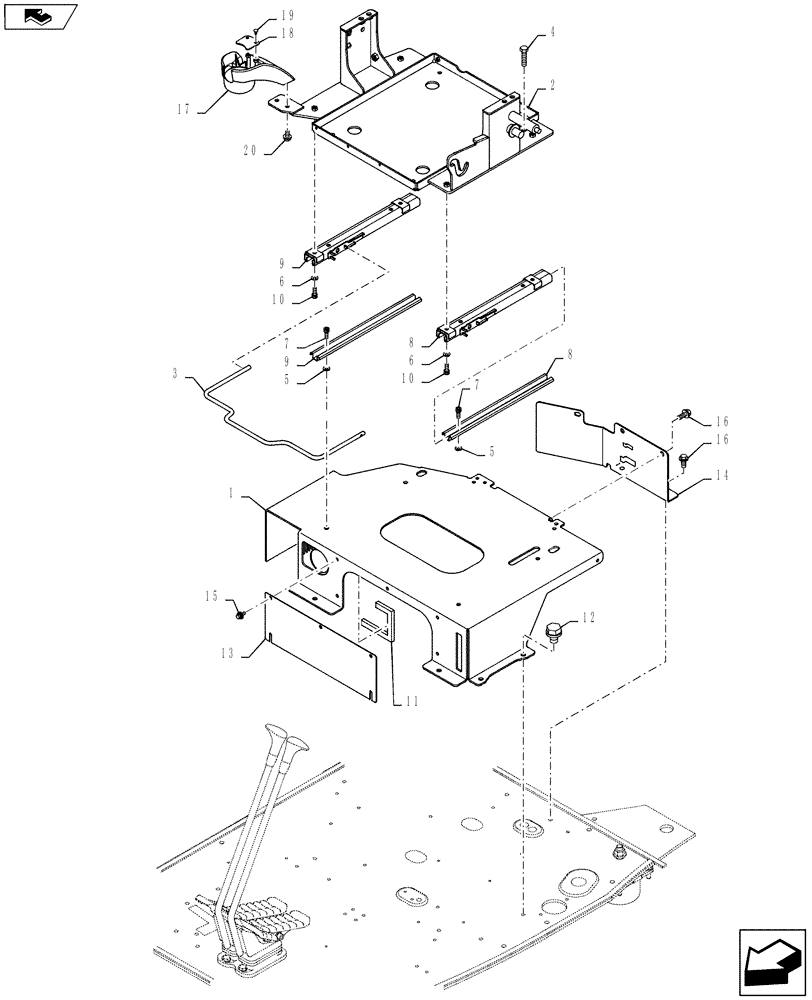

Запчасти Case CX235C SR (90.120.01[02]) - CAB - CONSOLE & SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN32160

BASE

1шт.

2

KHN32170

BASE

1шт.

3

KHN21960

LEVER

1шт.

4

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

183-108VR

SPRING WASHER

4шт.

7

108R008Y016R

BOLT

4шт.

8

KHN13431

SLIDE GUIDE

1шт.

9

KHN13421

SLIDE GUIDE

1шт.

10

108R008Y020R

HEX SOC SCREW

4шт.

11

KHN32850

SEAL

1шт.

12

166346A1

BOLT,Sems, M10

5шт.

13

KHN21910

COVER

1шт.

14

KHN32780

COVER

, Serial Range: -NDSAK1174

1шт.

14

KHN32781

COVER

, Start Serial: NDS6K1175

1шт.

15

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

16

166351A1

BOLT,Sems, M10 x 20mm

5шт.

17

KHN23220

HOLDER

1шт.

18

KHN14760

PLATE

1шт.

19

KHN2470

CLIP

2шт.

20

KHN13540

BOLT,Spcl

2шт.
