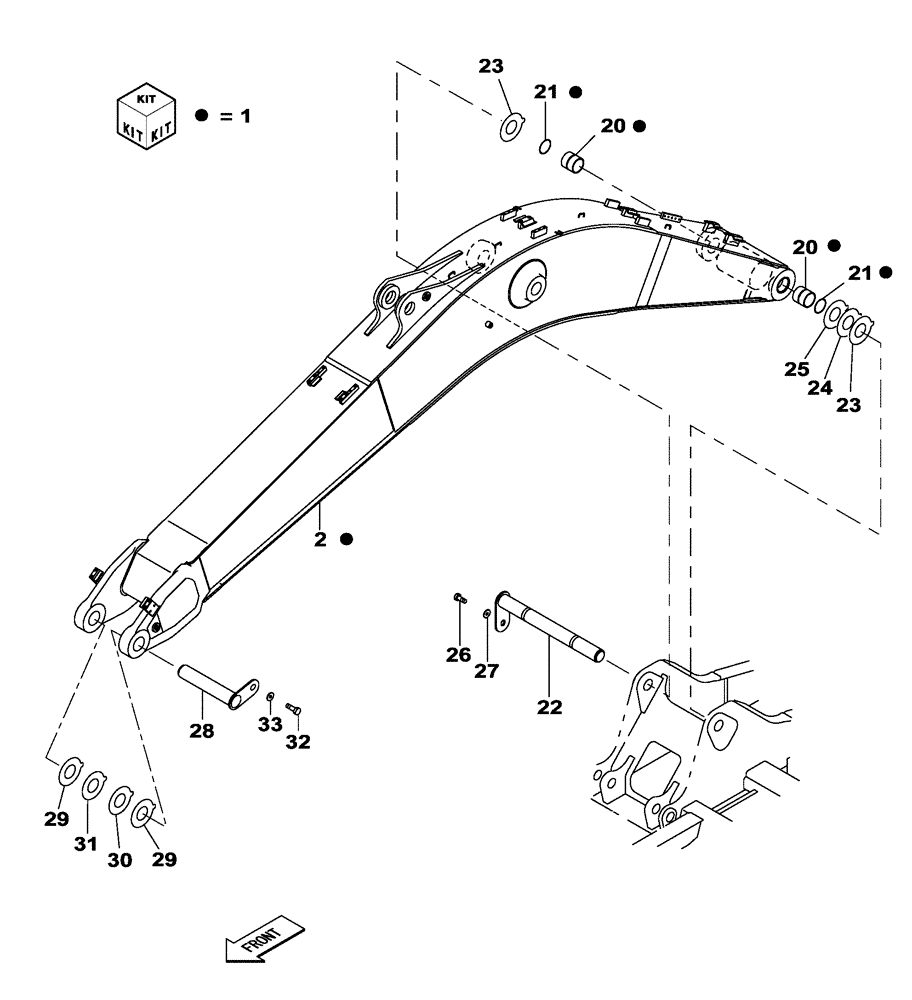

Запчасти Case CX235C SR (84.910.01) - BOOM - 5.70 M EMS (84) - BOOMS, DIPPERS & BUCKETS

1

KRV36440

BOOM

5.70 m EMS, Incl 20 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

20

KRV2397

SELF LUB RING

2шт.

21

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

22

KRV36590

PIN

1шт.

23

KRV11030

SHIM,1mm Thk

1.0 mm

2шт.

24

KRV11040

SHIM,2mm Thk

2.0 mm

1шт.

25

KRV31490

SHIM

1.5 mm

1шт.

26

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

27

157141A1

WASHER

1шт.

28

KRV35251

PIN

1шт.

29

KRV11030

SHIM,1mm Thk

1.0 mm

2шт.

30

KRV11040

SHIM,2mm Thk

2.0 mm

1шт.

31

KRV31490

SHIM

1.5 mm

1шт.

32

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

33

157141A1

WASHER

1шт.

34

KRV36620B1

STAY

Not Shown

1шт.

35

166352A1

BOLT

Not Shown

2шт.
