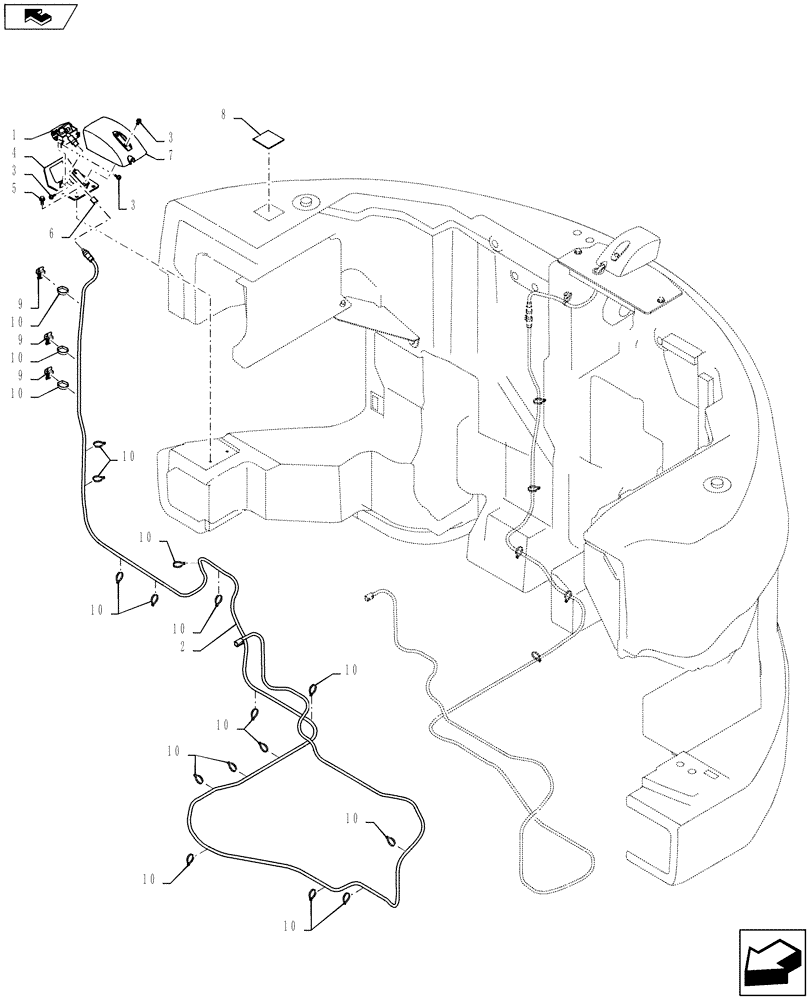

Запчасти Case CX235C SR (55.530.02) - ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

KHR23830

VIDEO CAMERA

1шт.

2

KHR28650

WIRE HARNESS

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

5шт.

4

KHR28630B1

BRACKET, SUPPORTING

1шт.

5

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

6

157806A1

COLLAR

1шт.

7

KHR28640

COVER

1шт.

8

KHR32670

PLATE

Plate

1шт.

9

KHR10220

MOUNTING CLIP

3шт.

10

150496A1

MOUNTING CLIP

18шт.

11

183-108VR

SPRING WASHER

Not Shown

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Not Shown

2шт.
