(55.510.01[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT

Запчасти Case CX235C SR (55.510.01[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT (55) - ELECTRICAL SYSTEMS

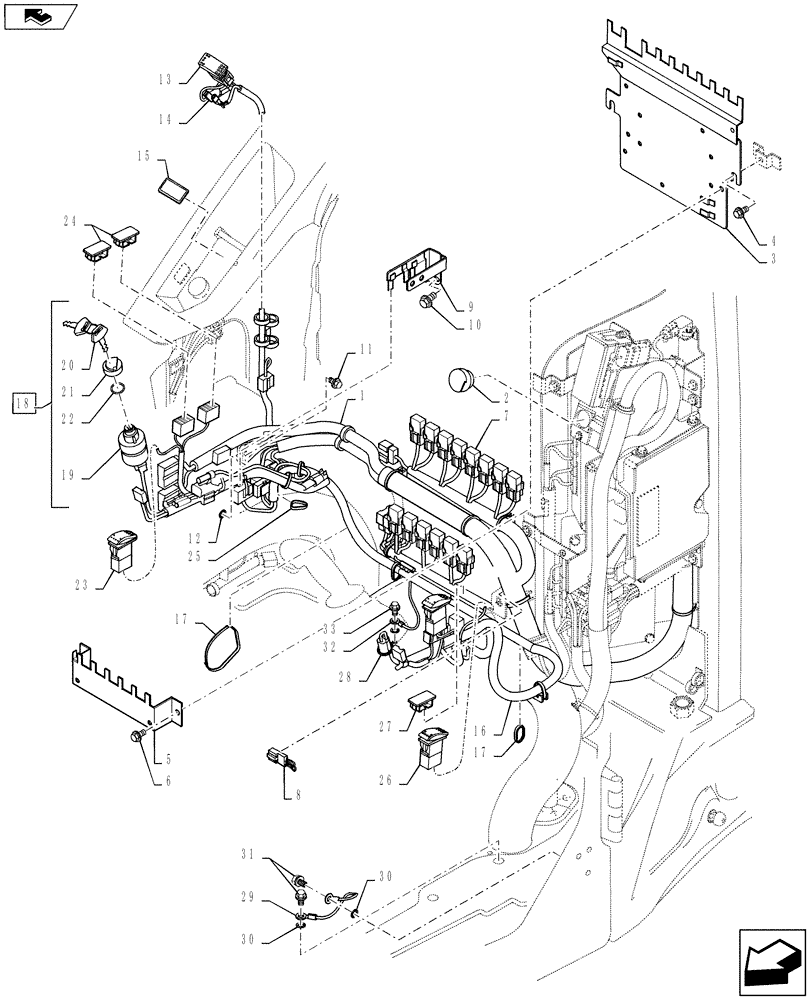

Схема запчастей Case CX235C SR - (55.510.01[01]) - OPERATORS COMPARTMENT ELECTRIC CIRCUIT (55) - ELECTRICAL SYSTEMS
27
13
22
15
7
30
33
30
31
3
21
home
9
16
24
1
14
18
29
17
6
2
25
10
17
23
20
8
28
11
19
4
5
26
32
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR30880

WIRE HARNESS

1шт.

2

KHR19970

WIRE HARNESS

1шт.

3

KHR31990

BRACKET

1шт.

4

166345A1

BOLT

2шт.

5

KHR32000

BRACKET

1шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

7

KHR3802

RELAY

14шт.

8

KHR32010

WIRE HARNESS

1шт.

9

KHR32110

BRACKET

1шт.

10

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

11

167518A1

BOLT

1шт.

12

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

13

KHR28540

SWITCH

Horn

1шт.

14

KHR32020

WIRE HARNESS

1шт.

15

KHR10390

CAP

1шт.

16

KHR30900

WIRE HARNESS

1шт.

17

150496A1

MOUNTING CLIP

4шт.

18

KHR20050

IGNITION SWITCH

Incl 19 - 22

1шт.

19

KHR3078

IGNITION SWITCH

1шт.

20

KHR20070

IGNITION KEY

2шт.

21

KHR3080

CAP

1шт.

22

KHR3081

WASHER

1шт.

23

KHR15850

ROCKER SWITCH

Travel Alarm

1шт.

24

KHR10390

CAP

2шт.

25

150496A1

MOUNTING CLIP

1шт.

26

KHR28530

SWITCH

Emergency stop

1шт.

27

KHR10390

CAP

1шт.

28

150496A1

MOUNTING CLIP

1шт.

29

KHR11240

GROUND CABLE

1шт.

30

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

31

167518A1

BOLT

2шт.

32

892-11008

LOCK WASHER,8mm ID

1шт.

33

167518A1

BOLT

1шт.
