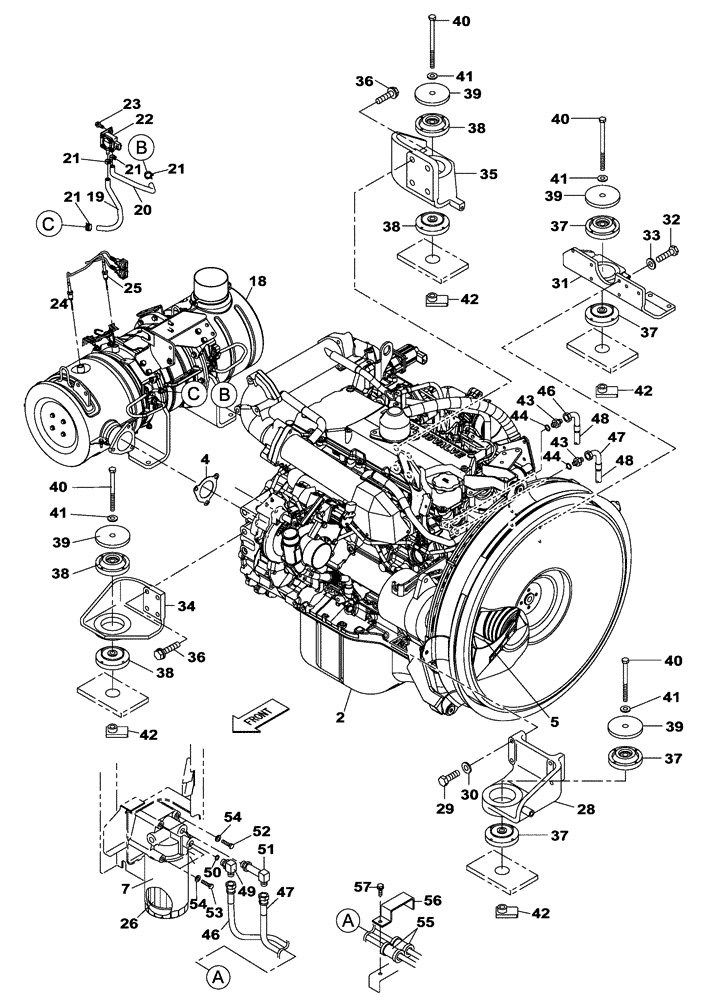

Запчасти Case CX235C SR (10.001.02[01]) - ENGINE MOUNTING - ENGINE - OIL CIRCUIT (10) - ENGINE

1

KRH15000

ENGINE

NSS

1шт.

2

KRH15020

ENGINE

1шт.

2

KRH15020EC

CORE-EPA ENGINE

Return Number

1шт.

4

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Harness, Wire, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

18

KRH13660

CATALYST

1шт.

19

KHH13300

HYDRAULIC HOSE

1шт.

20

KHH14470

HYDRAULIC HOSE

1шт.

21

NSS

NOT SOLD SEPARAT

Incl in 1

4шт.

22

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

24

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

26

87327673

ENGINE OIL FILTER

1шт.

28

KRH14440

ENGINE MOUNT

1шт.

29

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

4шт.

30

150409A1

WASHER

4шт.

31

KRH14930

ENGINE MOUNT

1шт.

32

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

5шт.

33

150409A1

WASHER

5шт.

34

KRH14450

ENGINE MOUNT

1шт.

35

KRH14470

ENGINE MOUNT

1шт.

36

165929A1

BOLT,Sems, M16

8шт.

37

KRH15050

SILENTBLOC

4шт.

38

KRH15040

SILENTBLOC

4шт.

39

KRH14000

PLATE

4шт.

40

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

41

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

42

KHH14230

NUT

4шт.

43

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl 44

2шт.

44

154503A1

O-RING

1шт.

46

KRH14030

HYDRAULIC HOSE

1шт.

47

KRH10330

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

1шт.

48

KBR0819

PLASTIC-RUBBER TUBE

2шт.

49

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl 50

1шт.

50

154503A1

O-RING

1шт.

51

KHJ22650

ELBOW

1шт.

52

102R008Y110R

BOLT

2шт.

53

KHH0515

BOLT

2шт.

54

153081A1

WASHER

4шт.

55

KHJ2023

HOSE CLAMP

2шт.

56

KHH13550

BRACKET

1шт.

57

166052A1

BOLT

1шт.
