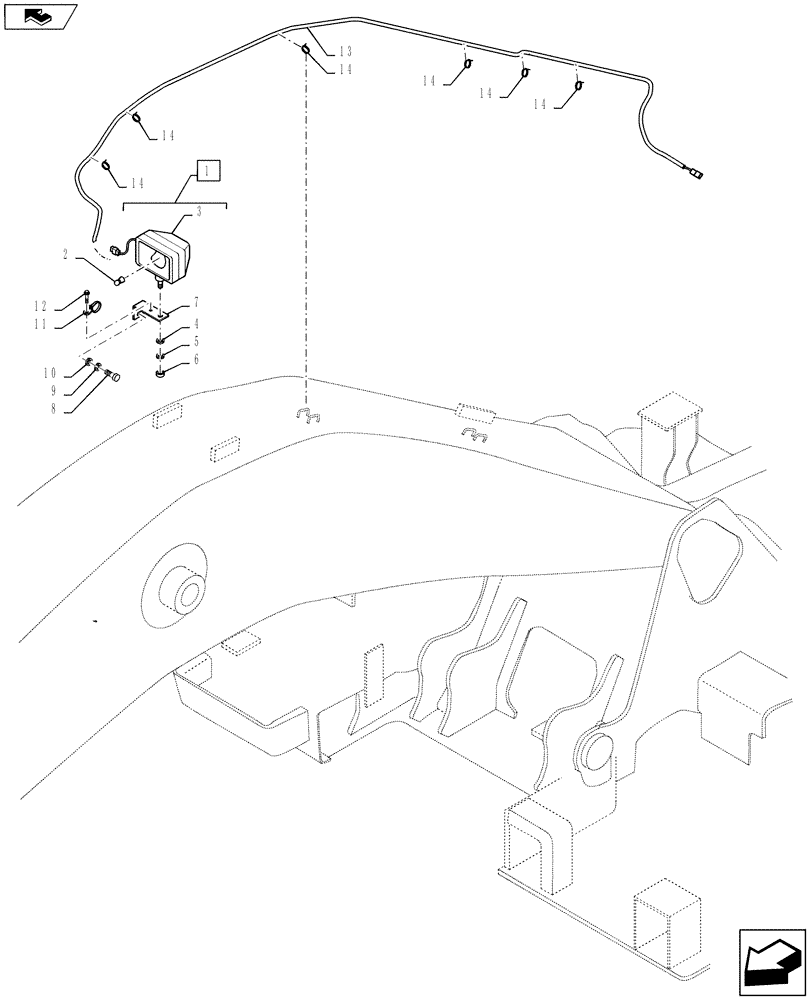

Запчасти Case CX235C SR (55.404.01) - WORK LAMP - BOOM (55) - ELECTRICAL SYSTEMS

1

159598A1

PORTABLE LAMP

Incl 2 - 6

1шт.

2

152812A1

BULB

1шт.

3

159615A1

LIGHT

1шт.

4

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

1шт.

5

892-16014

LOCK WASHER,M14, Hvy

1шт.

6

167034A1

NUT

1шт.

7

150834A1

BRACKET

1шт.

8

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

11

KHR2583

CLAMP

1шт.

12

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

13

KHR11160

WIRE HARNESS

1шт.

14

150496A1

MOUNTING CLIP

6шт.
