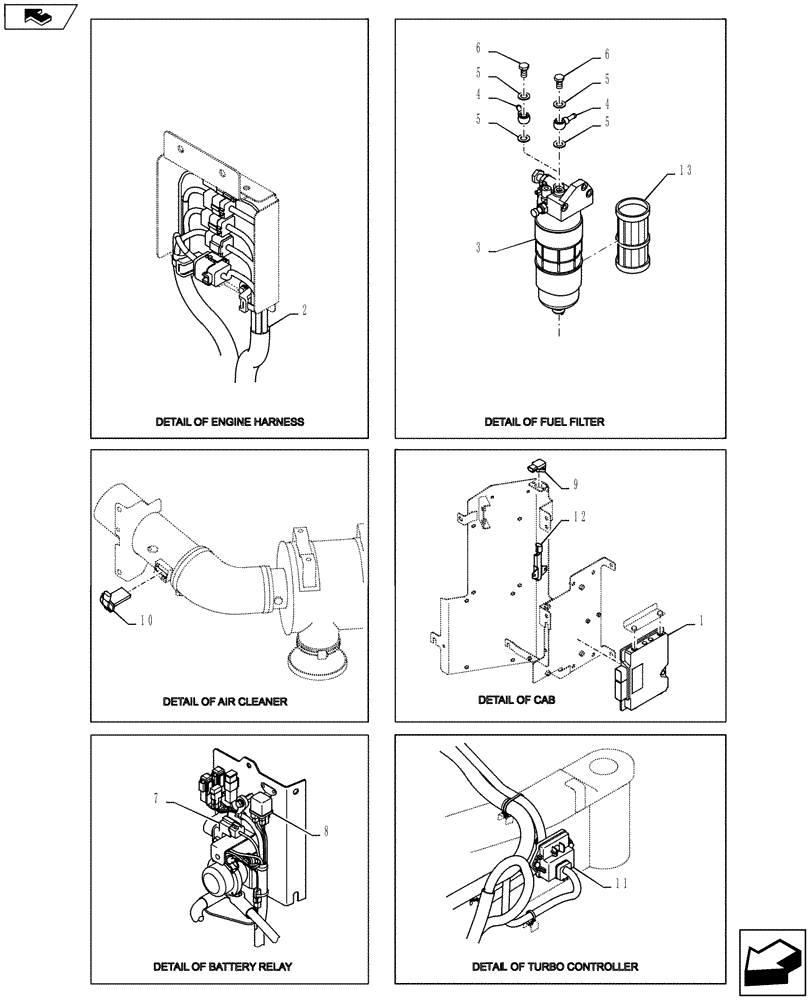

Запчасти Case CX235C SR (10.001.01[03]) - ENGINE (10) - ENGINE

0

KRH15330

ENGINE

1шт.

1

KRH15320

CONTROL UNIT

Engine

1шт.

2

NSS

NOT SOLD SEPARAT

Wire Harness, Incl in 0

1шт.

3

NSS

NOT SOLD SEPARAT

Filter, Incl in 0

1шт.

4

KHH13380

JOINT

2шт.

5

KHH12610

PACKING RING

4шт.

6

KHH12600

SCREW

2шт.

7

NSS

NOT SOLD SEPARAT

Starter Relay, Incl in 0

1шт.

8

NSS

NOT SOLD SEPARAT

Relay, Incl in 0

1шт.

9

KHH0536

SENSOR

Baro

1шт.

10

NSS

NOT SOLD SEPARAT

Sensor, Incl in 0

1шт.

11

KRH13650

ECU

1шт.

11

84389447R

REMAN ELECT CONTROL

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-), Reman for New PN KRH13650

1шт.

11

84389447C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

NSS

NOT SOLD SEPARAT

Rsistor, Incl in 0

1шт.

13

84273157

FUEL FILTER

1шт.

14

KHH14570

CAP

Not Shown

2шт.

15

KHH14590

CAP

Not Shown

4шт.

16

KHH14600

LOCK PIN

Not Shown

6шт.

17

153591A1

GLUE

Not Shown

1шт.
