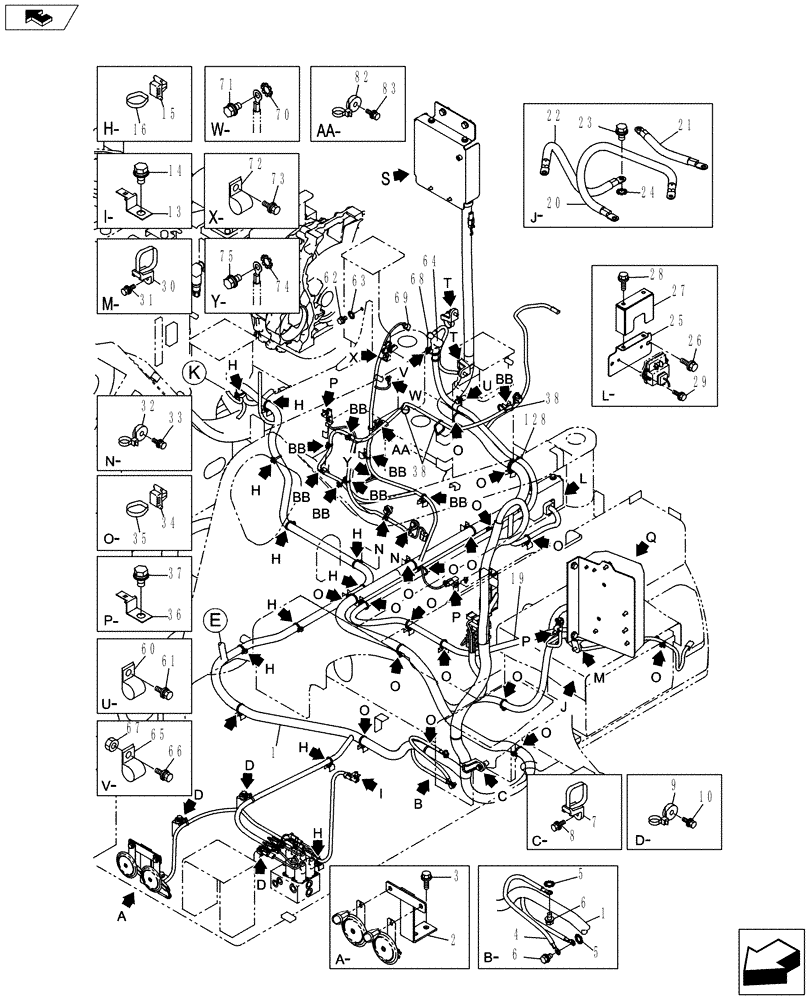

Запчасти Case CX235C SR (55.100.01[01]) - ELECTRIC SYSTEM - WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KRR19120

WIRE HARNESS

1шт.

2

KMR11780

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

Bolt, SEMS

2шт.

4

KHR11090

GROUND CABLE

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

T

2шт.

6

167518A1

BOLT

Bolt M8X16 (WITH WASHER)

2шт.

7

KHR2581

CLAMP

1шт.

8

KHJ1215

BOLT,Spcl

1шт.

9

KHR2584

CLAMP

3шт.

10

KHJ1215

BOLT,Spcl

3шт.

13

158962A1

CLIP

1шт.

14

167518A1

BOLT

Bolt M8X16 (With Washer)

1шт.

15

KHR10220

MOUNTING CLIP

11шт.

16

150496A1

MOUNTING CLIP

Band, Harness

11шт.

19

KHR26210

CABLE

1шт.

20

KHR12330

ELECTRIC CABLE

1шт.

21

KHR15070

NEG BATTERY CABLE

1шт.

22

KHR26200

CABLE

1шт.

23

KHJ2298

BOLT,Spcl

1шт.

24

893-11010

LOCK WASHER,Ext Tooth, M10

T

1шт.

25

KRR19270

BRACKET

1шт.

26

166345A1

BOLT

2шт.

27

KRR17600

COVER

1шт.

28

166345A1

BOLT

2шт.

29

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

Bolt

2шт.

30

KHR2581

CLAMP

1шт.

31

KHJ1215

BOLT,Spcl

1шт.

32

KHR2584

CLAMP

2шт.

33

KHJ1215

BOLT,Spcl

2шт.

34

KHR10220

MOUNTING CLIP

16шт.

35

150496A1

MOUNTING CLIP

Band, Harness

16шт.

36

158962A1

CLIP

3шт.

37

167518A1

BOLT

Bolt M8X16 (With Washer)

3шт.

38

150496A1

MOUNTING CLIP

Band, Harness

3шт.

60

162150A1

CLAMP

Spl

1шт.

61

167518A1

BOLT

Bolt M8X16 (With Washer)

1шт.

62

KHJ2298

BOLT,Spcl

1шт.

63

893-11010

LOCK WASHER,Ext Tooth, M10

T

1шт.

64

KHR4114

PROTECTOR

1шт.

65

162150A1

CLAMP

Spl

1шт.

66

167518A1

BOLT

Bolt M8X16 (With Washer)

1шт.

67

162R008VR

NUT

1шт.

68

KHR1667

PROTECTION CAP

1шт.

69

KHR1667

PROTECTION CAP

1шт.

70

893-11006

LOCK WASHER,Ext Tooth, M6

T

1шт.

71

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

72

159150A1

COLLAR

Clamp

1шт.

73

167280A1

BOLT,Spcl, M5 x 8mm

Bolt, Spl (M5X8)

1шт.

74

893-11008

LOCK WASHER,Ext Tooth, M8

T

1шт.

75

167518A1

BOLT

Bolt M8X16 (With Washer)

1шт.

82

KHR2584

CLAMP

1шт.

83

KHJ1215

BOLT,Spcl

1шт.

128

150496A1

MOUNTING CLIP

Band, Harness

5шт.
