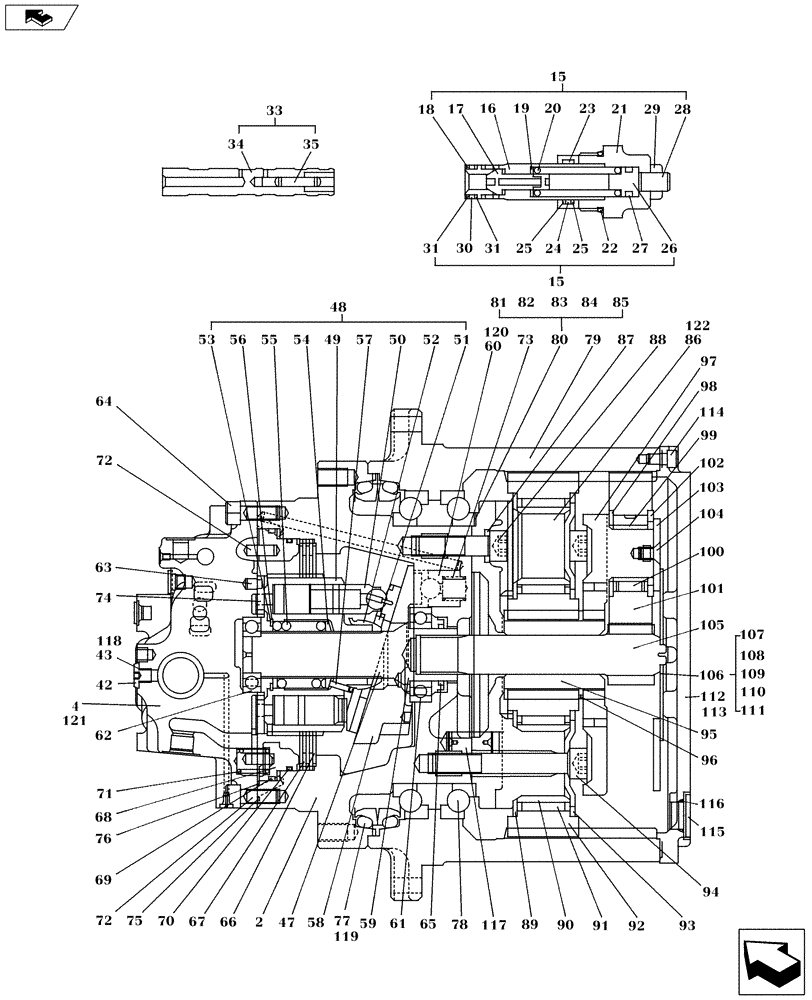

Запчасти Case CX235C SR (48.130.06[02]) - TRACTION MOTOR - COMPONENTS (48) - TRACKS & TRACK SUSPENSION

2

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

10

154495A1

O-RING

2шт.

14

154589A1

O-RING

2шт.

15

LJ015300

VALVE PRESSURE RELIE

2шт.

16

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

17

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

18

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

19

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

20

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

21

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

22

155225A1

O-RING

2шт.

23

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

24

154495A1

O-RING

2шт.

25

153977A1

BACK-UP RING

4шт.

26

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

27

155063A1

O-RING

2шт.

28

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

29

160293A1

NUT

2шт.

30

154479A1

O-RING

2шт.

31

153964A1

BACK-UP RING

4шт.

32

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

8шт.

33

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

34

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

35

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

38

154487A1

O-RING

2шт.

41

156880A1

ORIFICE

2шт.

42

161773A1

PLUG

4шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

45

164485A1

ORIFICE

1шт.

47

LB00545

SHAFT

1шт.

48

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

49

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

50

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

9шт.

51

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

52

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

53

160103A1

RING, SNAP

RING SNAP

1шт.

54

160203A1

SPRING SEAT

1шт.

55

160590A1

SPRING

1шт.

56

158113A1

COLLAR

1шт.

57

155631A1

COTTER PIN

3шт.

58

LR015070

PLATE

1шт.

59

155950A1

BALL

Steel

2шт.

60

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

61

LB00546

BEARING,50mm ID x 90mm OD x 20mm W

1шт.

62

LB00547

BEARING,35mm ID x 72mm OD x 17mm W

1шт.

63

LA010950

DOWEL

1шт.

64

108R014Z035N

BOLT

10шт.

65

LE014680

OIL SEAL

1шт.

66

LR00582

PLATE

3шт.

67

165696A1

PLATE

2шт.

68

LJ014600

PISTON

1шт.

69

165720A1

OIL SEAL

Oil

1шт.

70

165721A1

SEALING RING

Ring

1шт.

71

156090A1

SPRING

8шт.

72

160097A1

COTTER PIN

4шт.

73

160592A1

SPRING

2шт.

74

LR015030

PLATE

1шт.

75

154463A1

O-RING

4шт.

76

155220A1

O-RING

1шт.

77

LE019010

GASKET

2шт.

78

LB00548

BEARING

2шт.

79

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

80

LH00254

SHIM KIT

1шт.

81

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

82

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

83

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

84

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

85

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

86

LS003340

SUPPORT

1шт.

87

LA00702

WASHER

8шт.

88

LA00703

BOLT

8шт.

89

LR00583

PLATE

4шт.

90

LB00549

RING RACE

4шт.

91

LB011790

NEEDLE BEARING

4шт.

92

LC00163

SUN GEAR

4шт.

93

LR015040

THRUST PLATE

4шт.

94

LA00704

BOLT

4шт.

95

LC002880

SUN GEAR

1шт.

96

LA00705

RING, SNAP

RING SNAP

1шт.

97

LS003350

SUPPORT

1шт.

98

LR00585

PLATE

3шт.

99

LB011800

BEARING

3шт.

100

LB011810

NEEDLE BEARING

3шт.

101

LC002890

IDLER PINION

3шт.

102

LR00586

PLATE

3шт.

103

LR015050

THRUST PLATE

1шт.

104

LV00029

SCREW

3шт.

105

LC002900

GEAR

1шт.

106

LR00588

DISC

1шт.

107

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

108

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

109

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

110

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

111

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

112

LW006290

COVER

1шт.

113

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

1

108R010Z020N

BOLT

16шт.

115

165681A1

PLUG

3шт.

116

154503A1

O-RING

3шт.

117

160104A1

PIN

4шт.

118

LZ011370

KIT

1шт.

119

LZ010600

REPAIR KIT

1шт.

120

LW006290

COVER

1шт.

121

LZ007970

REPAIR KIT

1шт.

122

LZ011450

REDUCER

1шт.
