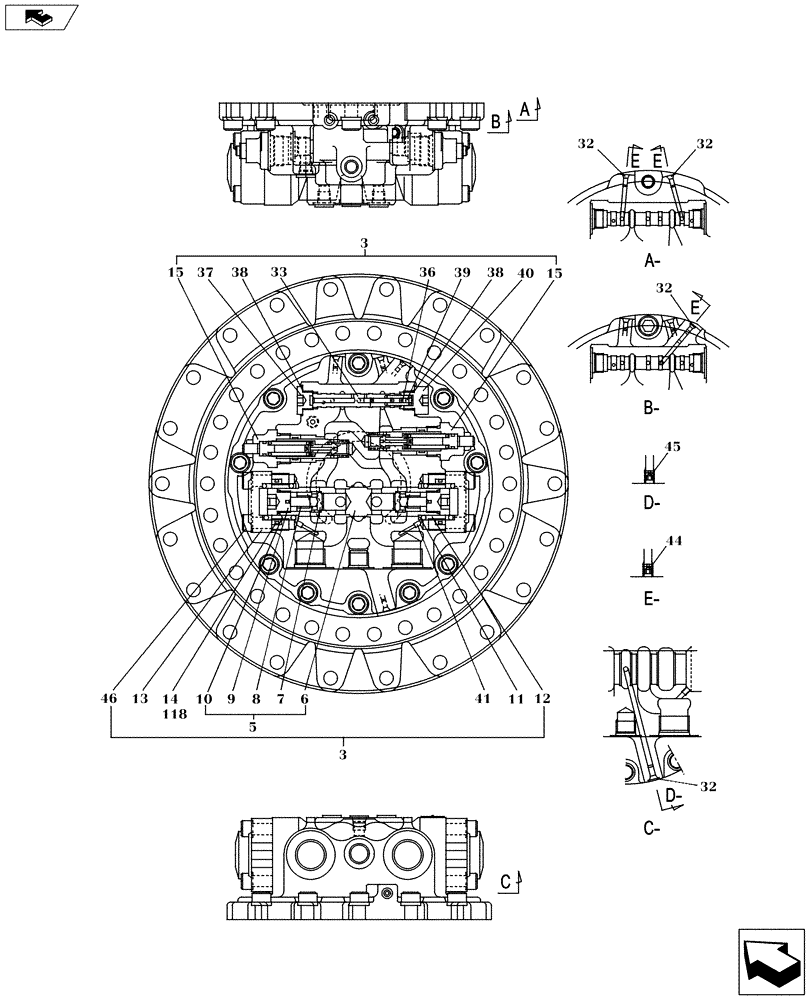

Запчасти Case CX235C SR (48.130.06[01]) - TRACTION MOTOR - COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

2

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

5

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

6

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

7

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

9

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

10

154495A1

O-RING

2шт.

11

156110A1

SPRING SEAT

2шт.

12

LG006200

SPRING

2шт.

13

LR019520

BLOCK

2шт.

14

154589A1

O-RING

2шт.

15

LJ015300

VALVE PRESSURE RELIE

2шт.

16

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

22

155225A1

O-RING

2шт.

24

154495A1

O-RING

2шт.

25

153977A1

BACK-UP RING

4шт.

27

155063A1

O-RING

2шт.

30

154479A1

O-RING

2шт.

31

153964A1

BACK-UP RING

4шт.

32

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

8шт.

33

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

36

LG00343

COMPRESSION SPRING

1шт.

37

LK00329

PLUG

1шт.

38

154487A1

O-RING

2шт.

39

LS00127

GUIDE

1шт.

40

LK00306

PLUG

1шт.

41

156880A1

ORIFICE

2шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

44

156872A1

ORIFICE

3шт.

45

164485A1

ORIFICE

1шт.

46

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SOC HD M12X40 12.9 BLO

8шт.

60

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

65

LE014680

OIL SEAL

1шт.

69

165720A1

OIL SEAL

Oil

1шт.

70

165721A1

SEALING RING

Ring

1шт.

75

154463A1

O-RING

4шт.

76

155220A1

O-RING

1шт.

77

LE019010

GASKET

2шт.

79

NSS

NOT SOLD SEPARAT

Seal, Floating, Incl. in Upper Assy

1шт.

86

LS003340

SUPPORT

1шт.

105

LC002900

GEAR

1шт.

112

LW006290

COVER

1шт.

115

154503A1

O-RING

3шт.

117

160104A1

PIN

4шт.

118

LZ011370

KIT

1шт.

119

LZ010600

REPAIR KIT

1шт.

120

LW006290

COVER

1шт.

121

LZ007970

REPAIR KIT

1шт.

122

LZ011450

REDUCER

Reduction Gears for Travel

1шт.
