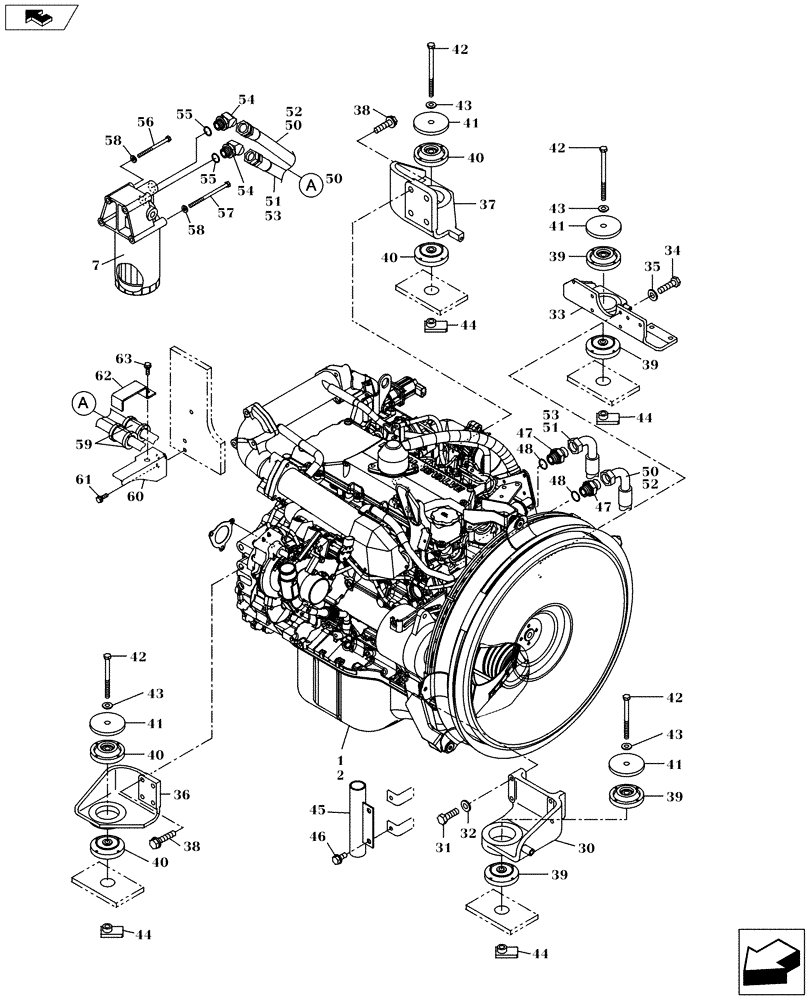

Запчасти Case CX235C SR (10.001.01[01]) - ENGINE (ISUZU) (10) - ENGINE

1

KRH15330

ENGINE

, Serial Range: -`0

1шт.

ASSY CONTAINS REF 2-29|4|ASSY

1шт.

2

KRH15340

ENGINE

1шт.

7

87365563

FILTER ASSY

FILTTER, OIL

1шт.

30

KRH14440

ENGINE MOUNT

1шт.

31

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

BOLT, HIGH STRENGTH

4шт.

32

KEH0114

WASHER

4шт.

33

KRH14930

ENGINE MOUNT

1шт.

34

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

BOLT, HIGH STRENGTH

5шт.

35

KEH0114

WASHER

5шт.

36

KRH14450

ENGINE MOUNT

1шт.

37

KRH14470

ENGINE MOUNT

1шт.

38

165929A1

BOLT,Sems, M16

BOLT, SEMS

8шт.

39

KRH15050

SILENTBLOC

4шт.

40

KRH15040

SILENTBLOC

4шт.

41

KRH14000

PLATE

4шт.

42

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

BOLT, HIGH STRENGTH

4шт.

43

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

WASHER, HIGH STRENGTH

4шт.

44

KHH14230

NUT

4шт.

45

KRH14890

BRACKET

1шт.

46

105R010Y025R

SCREW

2шт.

47

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER, HOSE, Serial Range: -`0

2шт.

ASSY CONTAINS REF 48

1шт.

48

UBJ0158

O-RING

2шт.

50

KRH15670

HYDRAULIC HOSE

1шт.

51

KBH10590

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

1шт.

52

KBR0819

PLASTIC-RUBBER TUBE

2шт.

53

KBR0662

PLASTIC-RUBBER TUBE

2шт.

54

157586A1

ELBOW

ELBOW, Serial Range: -`0

2шт.

ASSY CONTAINS REF 55

1шт.

55

150542A1

O-RING

O-RING

2шт.

56

102R008Y110R

BOLT

2шт.

57

KHH0515

BOLT

2шт.

58

153081A1

WASHER

WASHER, HIGH STRENGTH

4шт.

59

KHJ2023

HOSE CLAMP

2шт.

60

KRH15620

BRACKET

1шт.

61

105R010Y025R

SCREW

2шт.

62

KHH13550

BRACKET

1шт.

63

105R010Y025R

SCREW

1шт.
