(39.100.01[01A]) - UNDERCARRIAGE - CX235C SR WITH BLADE

Запчасти Case CX235C SR (39.100.01[01A]) - UNDERCARRIAGE - CX235C SR WITH BLADE (39) - FRAMES AND BALLASTING

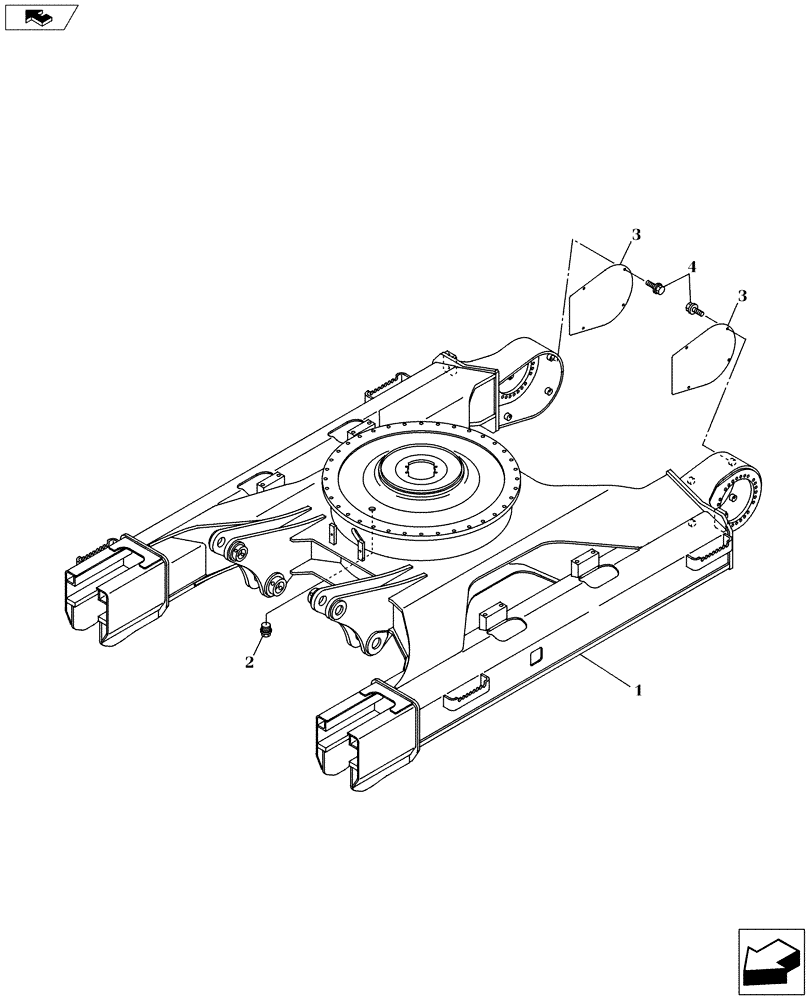

Схема запчастей Case CX235C SR - (39.100.01[01A]) - UNDERCARRIAGE - CX235C SR WITH BLADE (39) - FRAMES AND BALLASTING
1
3
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA13960

FRAME

1шт.

2

157221A1

PLUG

PLUG

1шт.

3

KRA1553

COVER

2шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT (WITH WASHER)

8шт.
