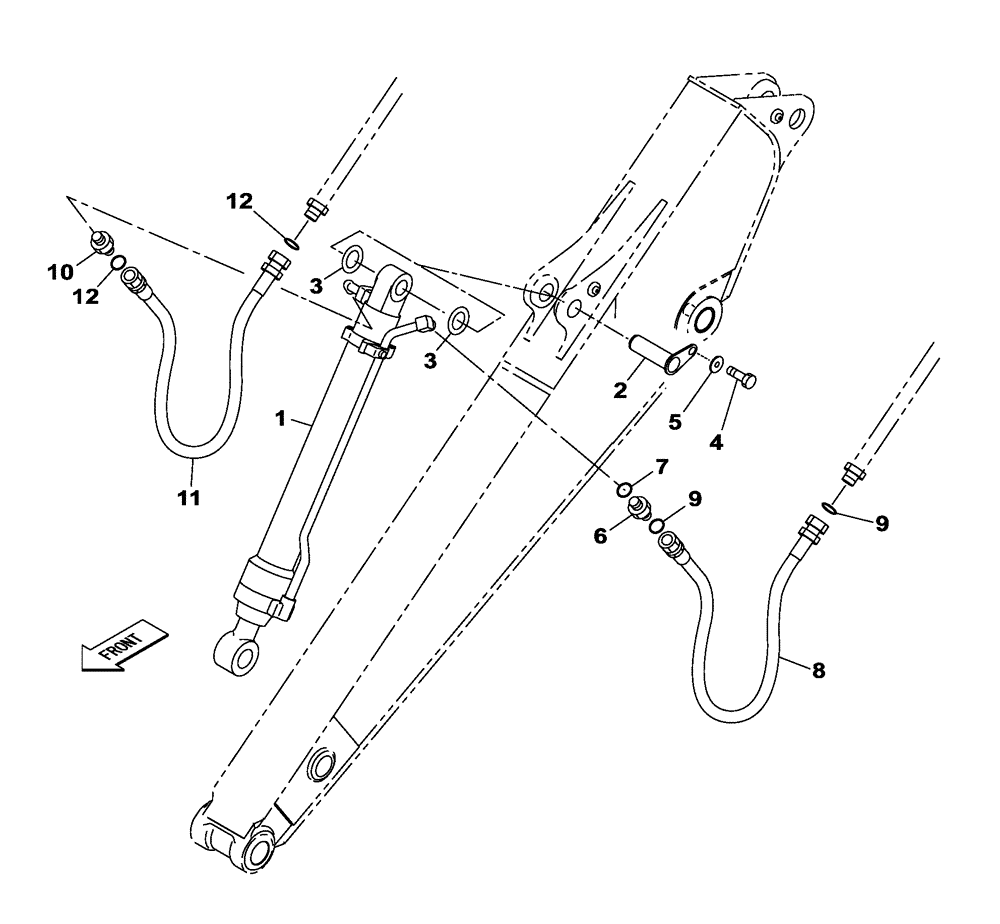

Запчасти Case CX235C SR (35.738.02) - BUCKET CYLINDER - DIPPER - 2.90 M (35) - HYDRAULIC SYSTEMS

1

KRV33010

BUCKET CYLINDER

1шт.

1

KRV33010R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR, TIER 4 (NA), DIPPER - 2.40 M (3/12-)

1шт.

1

KRV33010C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV10990

PIN

1шт.

3

160452A1

SHIM

2шт.

4

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

5

157141A1

WASHER

1шт.

6

KHJ1348

ADAPTER

Incl 7

1шт.

7

154503A1

O-RING

1шт.

8

KRV12791

HYDRAULIC HOSE

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KHJ15840

ADAPTER

1шт.

11

KRV22580

HYDRAULIC HOSE,22.2mm ID x 1550mm L

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
