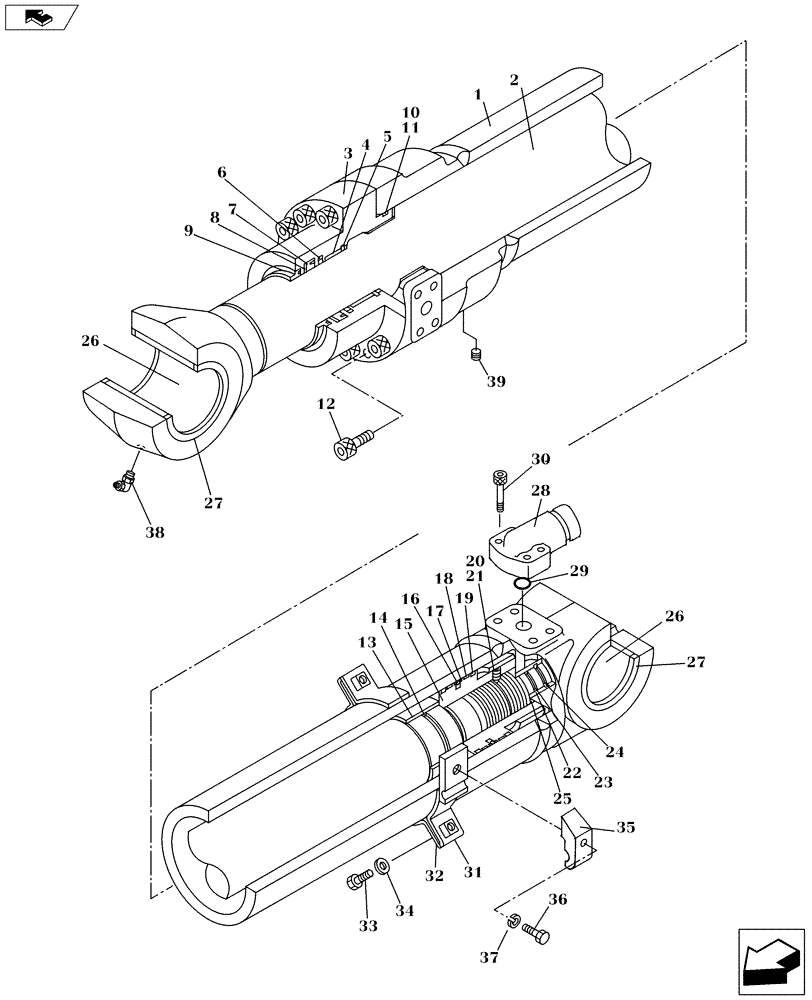

Запчасти Case CX235C SR (35.737.08) - ARM CYLINDER HBCV (35) - HYDRAULIC SYSTEMS

0

KRV33040

CYLINDER

Incl 4 - 39

1шт.

0

KRV33040R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR TIER 4 (NA) (3/12-)

1шт.

0

KRV33040C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Cyl, Incl in 0

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Rod, Incl in 0

1шт.

3

NSS

NOT SOLD SEPARAT

Head, Cylinder, Incl in 0

1шт.

4

155429A1

BUSHING

1шт.

5

155695A1

RING, SNAP

RING SNAP

1шт.

6

LE012390

RING

1шт.

7

LE012310

RING

1шт.

8

LE00954

BACK-UP RING

1шт.

9

160502A1

WIPER SEAL

Ring

1шт.

10

154789A1

O-RING

1шт.

11

LE00784

BACK-UP RING

1шт.

12

166094A1

BOLT,Hex Skt, M18 x 80mm

Bolt, HEX SOC HD

12шт.

13

LE013180

BACK-UP RING

1шт.

14

LE015980

BACK-UP RING

1шт.

15

LJ014160

PISTON

1шт.

16

155312A1

SEALING RING

1шт.

17

LE00785

BACK-UP RING

2шт.

18

LE013200

BACK-UP RING

2шт.

19

155307A1

RING

2шт.

20

156228A1

SET SCREW

1шт.

21

155981A1

BALL

Steel

1шт.

22

LE013210

BACK-UP RING

1шт.

23

LE00746

SEAL

1шт.

24

160128A1

STOP

Stopper

2шт.

25

160129A1

RING, SNAP

RING SNAP

1шт.

26

KRV2400

SELF LUB RING

2шт.

27

160483A1

BACK-UP RING

Wiper

4шт.

28

LJ014170

COUPLING FLANGE

1шт.

29

154543A1

O-RING

1шт.

30

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

HD M12X35 12.9 PHC

4шт.

31

LD001380

CLAMP BRACKET

1шт.

32

156375A1

MOUNTING CLIP

Band

1шт.

33

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

High Strength

2шт.

34

156227A1

WASHER

2шт.

35

155717A1

COLLAR

Holder, Pipe

1шт.

36

628-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9, Full Thd

M12X55 FULL 10.9 PHC

1шт.

37

892-10012

LOCK WASHER,M12

Spring Lock 12MM PLN

1шт.

38

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

Grease

1шт.

39

TLU0003

PLUG

2шт.
