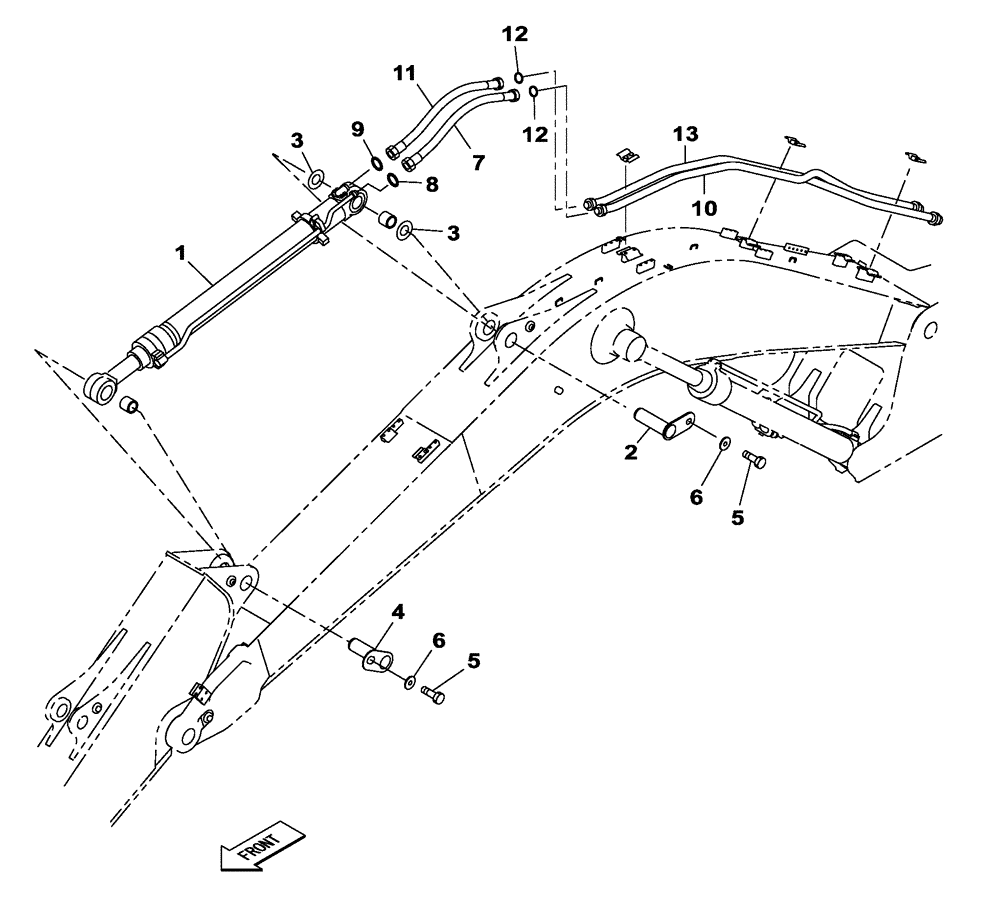

Запчасти Case CX235C SR (35.737.07) - HYD. LINE - DIPPER CYLINDER - EMS (35) - HYDRAULIC SYSTEMS

1

KRV33000

CYLINDER

See Figure 35.737.09

1шт.

1

KRV33000R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR TIER 4 (NA) (3/12-)

1шт.

1

KRV33000C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV10981

PIN

1шт.

3

158691A1

WASHER

2шт.

4

KRV32521

PIN

1шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

157141A1

WASHER

2шт.

7

KBV23530

HYDRAULIC HOSE

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

10

KRV36330

PIPE

1шт.

11

KRV25341

HOSE

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

13

KRV36340

PIPE

1шт.
